LTC7893AUFDM#WPBF - Analog Devices

Description: 100V Low IQ, Synchronous Boost Controller for GaN FETs

Download LTC7893AUFDM#WPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

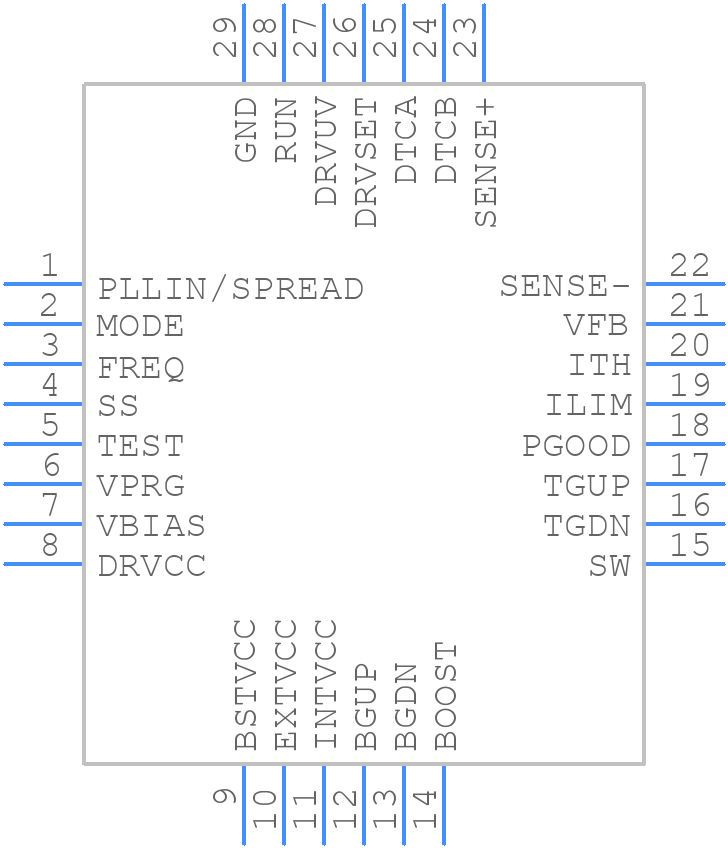

Symbol
LTC7893AUFDM#WPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC7893AUFDM#WPBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UFDM Package 28-Lead Plastic Side Wettable QFN (4mm × 5mm)
click to zoom
3D Models
LTC7893AUFDM#WPBF - Analog Devices - 3D model - Quad Flat No-Lead - UFDM Package 28-Lead Plastic Side Wettable QFN (4mm × 5mm)
click to zoom

LTC7893AUFDM#WPBF Details

  • Manufacturer Part Number:

    LTC7893AUFDM#WPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    100 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PQCC-N28

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    100 V

  • Output Voltage-Min:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.16X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    3000 kHz

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

LTC7893AUFDM#WPBF Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the LTC7893AUFDM#WPBF can be found in the LTC7893 demo board manual, which provides a detailed layout guide and Gerber files for reference.
  • To optimize the performance of the LTC7893AUFDM#WPBF, consult the application notes and design guides provided by Analog Devices, and consider factors such as input and output filtering, PCB layout, and thermal management.
  • The LTC7893AUFDM#WPBF have a maximum junction temperature of 125°C. Ensure proper thermal management by providing adequate heat sinking, and following the thermal design guidelines provided in the datasheet and application notes.
  • The LTC7893AUFDM#WPBF is a commercial-grade device, but Analog Devices offers industrial-grade and automotive-grade versions of the device, such as the LTC7893IUFD#WPBF and LTC7893AUFD#WPBF, respectively, which are designed for high-reliability and high-temperature applications.
  • To troubleshoot issues with the LTC7893AUFDM#WPBF, consult the datasheet, application notes, and design guides provided by Analog Devices. Additionally, use debugging tools such as oscilloscopes to identify and isolate the problem.
