LTC8043FS8#PBF - Analog Devices

Description: Linear Technology LTC8043FS8#PBF, 12 bit Serial DAC, 8-Pin SOIC

Download LTC8043FS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

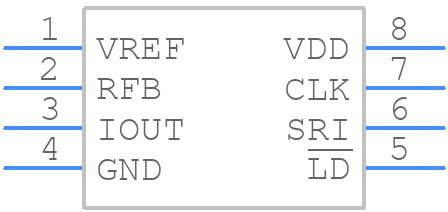

Symbol
LTC8043FS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC8043FS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8-ren3
click to zoom
3D Models
LTC8043FS8#PBF - Analog Devices - 3D model - Small Outline Packages - S8-ren3
click to zoom

LTC8043FS8#PBF Details

  • Manufacturer Part Number:

    LTC8043FS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Nom (tstl):

    0.25 µs

  • Supply Current-Max:

    0.5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LTC8043FS8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC8043FS8 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the input voltage should be well-regulated and free of noise.
  • The maximum ambient temperature range for the LTC8043FS8 is -40°C to 125°C. However, the device can operate at a junction temperature of up to 150°C.
  • Yes, the LTC8043FS8 is suitable for high-reliability applications. It is manufactured using a high-reliability process and is screened to ensure high reliability. However, it is essential to follow proper design and manufacturing practices to ensure the reliability of the final product.
  • To troubleshoot issues with the LTC8043FS8, start by checking the input voltage, output voltage, and current. Verify that the input and output capacitors are of high quality and have low ESR. Check for noise and ripple on the input and output lines. Also, ensure that the PCB layout is correct and follows the recommended guidelines.
