Description:Display Modules - LED Character and Numeric Green 7-Segment 2 Character Common Anode 2.1V 20mA 0.673" H x 0.984" W x 0.315" D (17.10mm x 25.00mm x 8.00mm) 18-DIP (0.600", 15.24mm)
A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the component away from heat sources and ensure good airflow.
Use a thermally conductive material for the heat sink, ensure good thermal interface material (TIM) between the device and heat sink, and follow the recommended thermal design guidelines.
Monitor the device's junction temperature, output voltage, and current. Implement over-temperature protection (OTP), over-voltage protection (OVP), and over-current protection (OCP) to prevent damage.
Yes, but ensure you follow the recommended design guidelines, perform thorough testing, and obtain any necessary certifications (e.g., AEC-Q100 for automotive applications).
Use a shielded enclosure, keep the device away from antennas and other EMI-sensitive components, and follow good PCB layout practices (e.g., keep signal traces short, use ground planes).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LTD-5621AG Overview

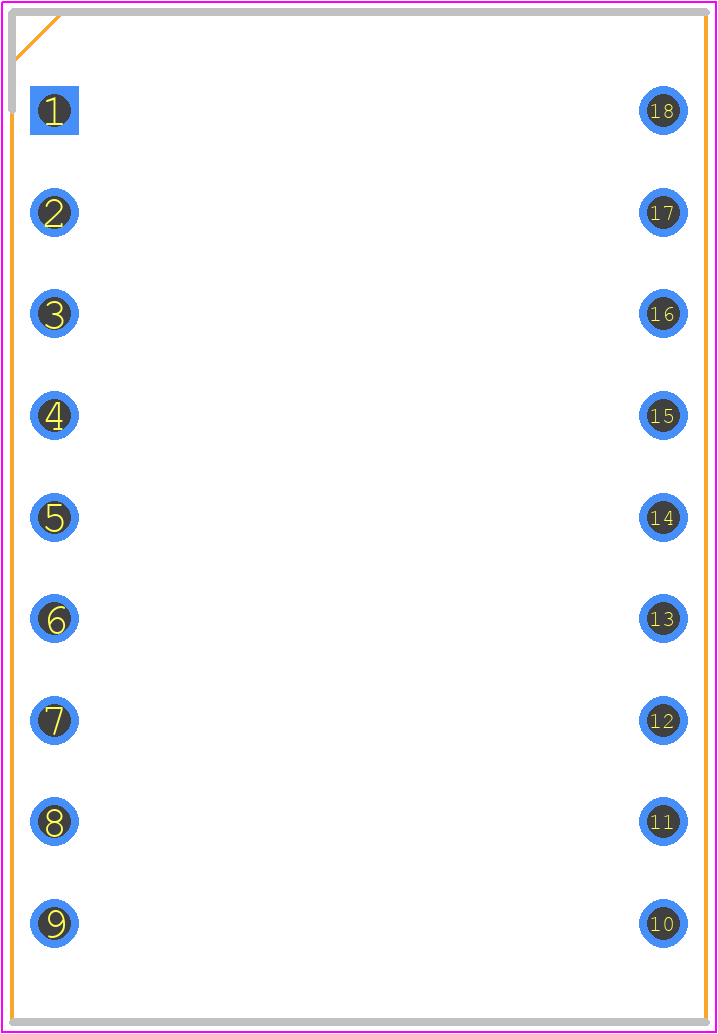

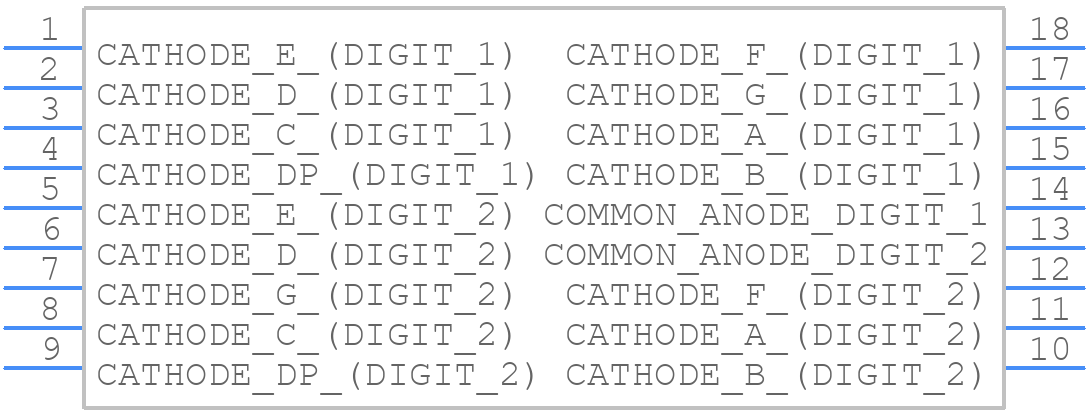

Use the download button to access the LTD-5621AG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTD-5,
or try a keyword search, such as Other Optoelectronics
