Littelfuse recommends a PCB layout with a large copper area connected to the thermal tab of the device to dissipate heat efficiently. A minimum of 1 oz copper thickness and a thermal relief pattern around the device are also recommended.
While LTKAK10-066C is a high-quality device, it is not specifically designed or qualified for high-reliability or aerospace applications. Engineers should consult with Littelfuse or consider alternative devices that meet the required standards and certifications.
Littelfuse recommends following the recommended soldering profile and using a solder with a melting point above 217°C (423°F) to ensure reliable connections. Additionally, a soldering iron with a temperature control and a fluxless solder process can help prevent damage to the device.
The maximum surge current rating of LTKAK10-066C is not explicitly stated in the datasheet. However, Littelfuse recommends consulting their application notes or contacting their technical support for guidance on surge current handling and protection.
No, LTKAK10-066C is not designed to operate above 650V. Exceeding the maximum voltage rating can lead to device failure or reduced lifespan. Engineers should consider alternative devices rated for higher voltages or consult with Littelfuse for custom solutions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LTKAK10-066C Overview

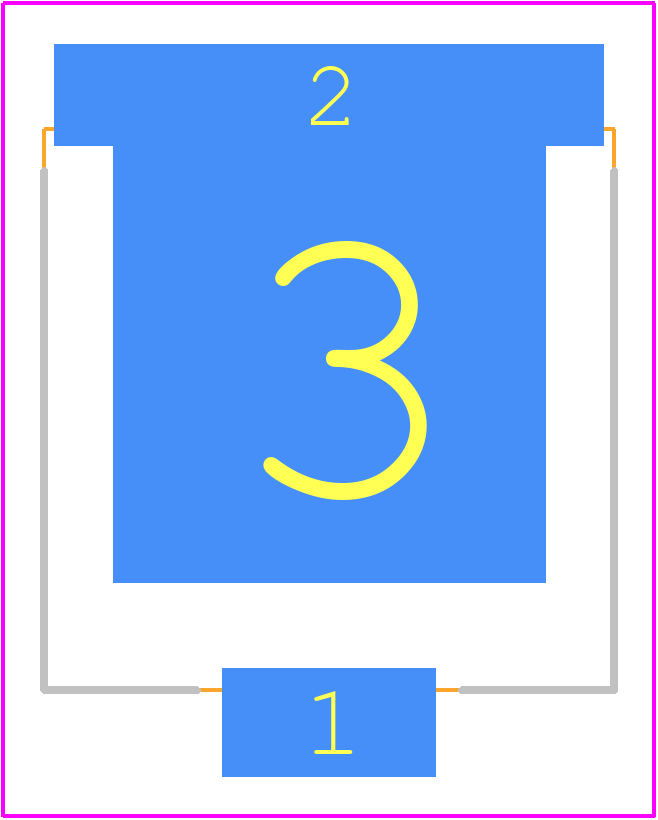

Use the download button to access the LTKAK10-066C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTKAK,
or try a keyword search, such as Transient Suppressors
