LTL-2500G - Lite-On

Description: LED Circuit Board Indicator LED Circuit Board Indicator Bar - Single, DIP Green Diffused 2.1V 100mA Rectangle with Flat Top 8.89mm x 3.81mm Through Hole

Download LTL-2500G Model

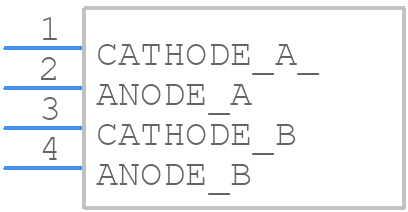

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTL-2500G - Lite-On PCB footprint - Other - Other - 10 x 4.85 x 6.15mm
click to zoom
3D Models
LTL-2500G - Lite-On  - 3D model - Other - 10 x 4.85 x 6.15mm
click to zoom

LTL-2500G Details

  • Manufacturer Part Number:

    LTL-2500G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.20.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    6

  • Additional Feature:

    HIGH RELIABILITY

  • Color:

    GREEN

  • Color@Wavelength:

    Green

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    2.8 V

  • JESD-609 Code:

    e0

  • Luminous Intensity-Min:

    0.0032 cd

  • Luminous Intensity-Nom:

    4.2 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    1

  • Number of LEDs in Array:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -35 °C

  • Optoelectronic Device Type:

    LED LAMP

  • Overall Height:

    6.15 mm

  • Packing Method:

    BULK

  • Peak Wavelength:

    565 nm

  • Shape:

    RECTANGULAR

  • Size:

    8.89 mm

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN LEAD

  • Terminal Pitch:

    2.54 mm
