LTL-2550G - Lite-On

Description: LED Circuit Board Indicator LED Circuit Board Indicator Bar - Single, DIP Green Diffused 2.1V 100mA Rectangle with Flat Top 19.00mm x 3.76mm Through Hole

Download LTL-2550G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

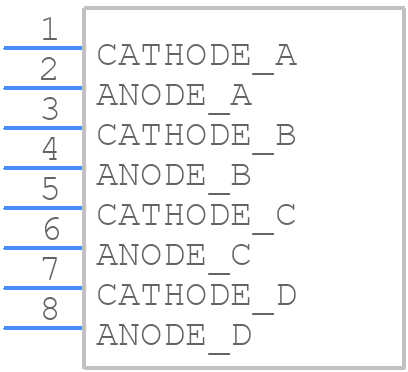

LTL-2550G - Lite-On - PCB symbol
click to zoom
PCB Footprints
LTL-2550G - Lite-On PCB footprint - Other - Other - LTL-2550G-1
click to zoom
3D Models
LTL-2550G - Lite-On - 3D model - Other - LTL-2550G-1
click to zoom

LTL-2550G Details

  • Manufacturer Part Number:

    LTL-2550G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.20.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    6

  • Color:

    GREEN

  • Color@Wavelength:

    Green

  • Configuration:

    SEPARATE, 4 ELEMENTS

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    2.8 V

  • JESD-609 Code:

    e0

  • Luminous Intensity-Min:

    0.007 cd

  • Luminous Intensity-Nom:

    8.0 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    1

  • Number of LEDs in Array:

    4

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -35 °C

  • Optoelectronic Device Type:

    LED LAMP

  • Overall Height:

    6.22 mm

  • Packing Method:

    BULK

  • Peak Wavelength:

    565 nm

  • Shape:

    RECTANGULAR

  • Size:

    19 mm

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN LEAD

  • Terminal Pitch:

    2.54 mm

LTL-2550G Frequently Asked Questions (FAQs)

  • A 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer is recommended. This helps to dissipate heat efficiently and reduces thermal resistance.
  • Ensure proper heat sinking, use a thermal interface material (TIM) with a thermal conductivity of at least 1 W/m-K, and consider using a heat sink with a thermal resistance of less than 10°C/W.
  • The maximum allowable voltage derating is 80% of the maximum rated voltage (30V) to ensure reliable operation and prevent premature failure.
  • Yes, but ensure that the switching frequency is below 500 kHz to avoid excessive power losses and reduce electromagnetic interference (EMI).
  • Use a shielded cable, keep the PCB layout compact, and ensure that the power supply lines are decoupled from the signal lines to minimize EMI.
