Description:LED Circuit Board Indicator LED Circuit Board Indicator Bar - 4 Wide, DIP Red (x 4) Diffused 2V 100mA Rectangle with Flat Top 8.89mm x 3.81mm Through Hole
A recommended PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. Additionally, it's recommended to keep the PCB traces as short and wide as possible to minimize thermal resistance.
To ensure the LED is properly driven, it's essential to follow the recommended drive current and voltage specifications. The LTL-2620HR has a recommended drive current of 350mA, and the voltage should be limited to 3.5V. Additionally, it's crucial to use a suitable driver IC that can provide a stable and regulated output to the LED.
To prevent damage to the LED, it's recommended to store the components in a dry, cool place away from direct sunlight. The LEDs should be handled with anti-static wrist straps or mats to prevent electrostatic discharge (ESD) damage. Additionally, the LEDs should be stored in their original packaging or in a sealed bag to prevent moisture absorption.
The junction temperature of the LED can be calculated using the thermal resistance (RθJ-A) specified in the datasheet and the ambient temperature. Exceeding the maximum junction temperature (Tj) of 125°C can lead to reduced lifespan, decreased brightness, and color shift. It's essential to ensure proper thermal management to keep the junction temperature within the specified range.
The LTL-2620HR is not designed for use in high-humidity environments. Exposure to high humidity can lead to moisture absorption, which can cause the LED to degrade or fail prematurely. If the LED must be used in a high-humidity environment, it's essential to take additional precautions such as conformal coating, potting, or using a hermetically sealed package.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LTL-2620HR Overview

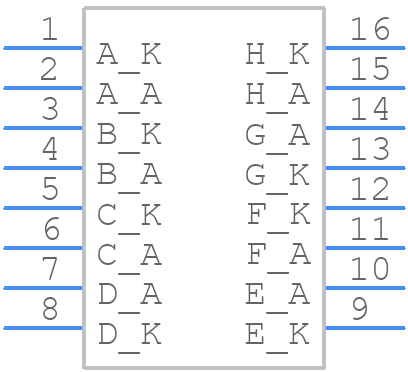

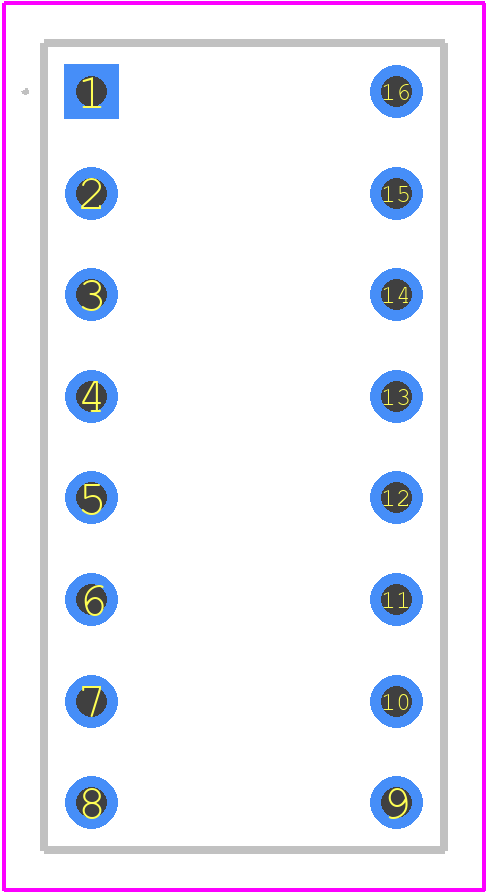

Use the download button to access the LTL-2620HR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTL-2,
or try a keyword search, such as Other Optoelectronics
