LTL-2785Y - Lite-On

Description: LED Bars and Arrays 1 BAR Yellow

Download LTL-2785Y Model

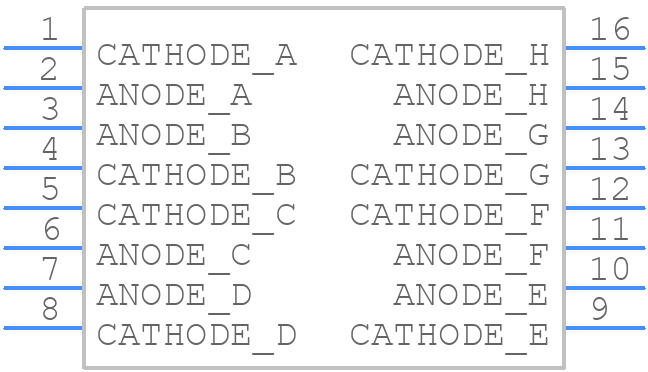

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

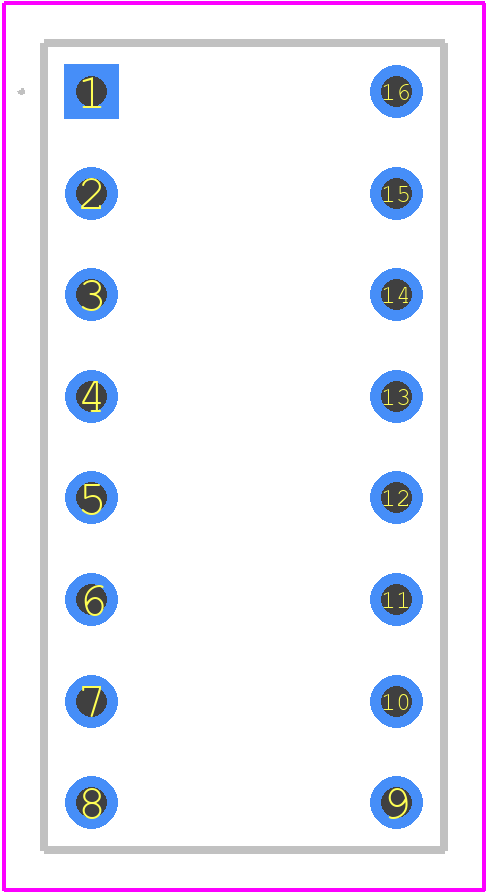

PCB Footprints
LTL-2785Y - Lite-On PCB footprint - Other - Other - LTL-2785Y-1
click to zoom
3D Models
LTL-2785Y - Lite-On  - 3D model - Other - LTL-2785Y-1
click to zoom

LTL-2785Y Details

  • Manufacturer Part Number:

    LTL-2785Y

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-16

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.20.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    7

  • Additional Feature:

    HIGH RELIABILITY

  • Color:

    YELLOW

  • Color@Wavelength:

    Yellow

  • Configuration:

    SEPARATE, 8 ELEMENTS

  • Forward Current-Max:

    0.02 A

  • Forward Voltage-Max:

    2.8 V

  • Luminous Intensity-Min:

    0.012 cd

  • Luminous Intensity-Nom:

    16.0 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    1

  • Number of LEDs in Array:

    8

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -35 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED

  • Overall Height:

    6.15 mm

  • Packing Method:

    BULK

  • Peak Wavelength:

    585 nm

  • Shape:

    RECTANGULAR

  • Size:

    19.05 mm

  • Surface Mount:

    NO

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Pitch:

    2.54 mm
