LTL-2820G - Lite-On

Description: LED Circuit Board Indicator LED Circuit Board Indicator Bar - 4 Wide, DIP Green (x 4) Diffused 2.1V 100mA Rectangle with Flat Top 8.89mm x 3.81mm Through Hole

Download LTL-2820G Model

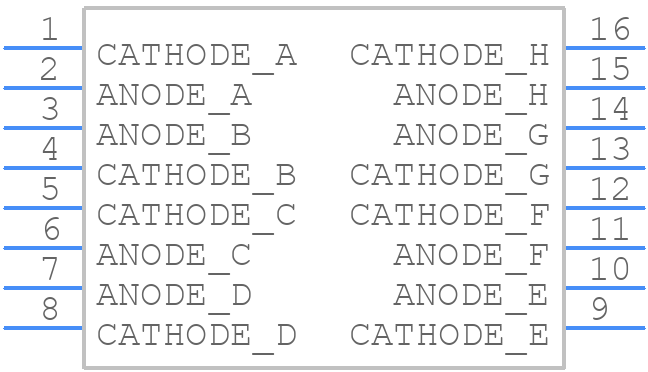

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

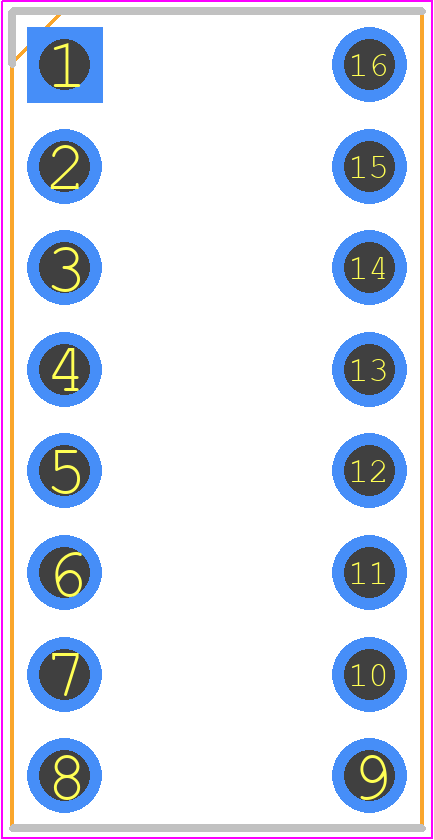

LTL-2820G - Lite-On PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - LTL-2820G
click to zoom
3D Models
LTL-2820G - Lite-On  - 3D model - Dual-In-Line Sockets - LTL-2820G
click to zoom

LTL-2820G Details

  • Manufacturer Part Number:

    LTL-2820G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-16

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.20.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    6

  • Color:

    GREEN

  • Color@Wavelength:

    Green

  • Configuration:

    SEPARATE, 8 ELEMENTS

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    2.8 V

  • JESD-609 Code:

    e0

  • Luminous Intensity-Min:

    0.0032 cd

  • Luminous Intensity-Nom:

    4.2 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    4

  • Number of LEDs in Array:

    8

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -35 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED ARRAY

  • Overall Height:

    6.15 mm

  • Packing Method:

    BULK

  • Peak Wavelength:

    565 nm

  • Shape:

    RECTANGULAR

  • Size:

    8.89 mm

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Pitch:

    2.54 mm

LTL-2820G Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure good thermal design, use a heat sink if necessary, and follow the recommended operating temperature range (TJ = -40°C to 125°C). Also, consider derating the device's power handling at high temperatures.
  • A 10uF to 22uF X5R or X7R ceramic capacitor is recommended for input decoupling. The capacitor should be placed close to the device's input pins to minimize noise and ensure stable operation.
  • Use a shielded enclosure, keep the device away from antennas and other EMI-sensitive components, and ensure good PCB layout practices (e.g., minimize trace lengths, use ground planes, and avoid parallel traces).
  • A 10uF to 22uF X5R or X7R ceramic capacitor is recommended for output filtering. The capacitor should be placed close to the device's output pins to minimize noise and ensure stable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTL-2820G Overview

Use the download button to access the LTL-2820G schematic symbol, PCB footprint, and 3D model.
