A recommended PCB layout for optimal thermal performance of the LTL-30EFJ is to have a large copper area on the top and bottom layers, with multiple vias connecting the two layers to dissipate heat effectively. Additionally, keeping the component away from other heat sources and ensuring good airflow around the device can help improve thermal performance.
To ensure the reliability of the LTL-30EFJ in high-temperature applications, it is essential to follow the recommended derating curves for the device, ensure good thermal management, and avoid operating the device at or near its maximum ratings. Additionally, using a thermally conductive material for the PCB and ensuring good airflow around the device can help improve reliability.
The LTL-30EFJ has an internal ESD protection diode, but it is still recommended to follow standard ESD handling procedures when handling the device. This includes using an ESD wrist strap or mat, storing the device in an anti-static bag, and avoiding touching the device's pins or leads.
While the LTL-30EFJ is primarily designed for low-frequency applications, it can be used in high-frequency applications with some limitations. The device's frequency response is dependent on the PCB layout, component selection, and operating conditions. It is recommended to consult with a qualified engineer or the manufacturer's application notes for specific guidance on using the LTL-30EFJ in high-frequency applications.
The LTL-30EFJ should be stored in a cool, dry place away from direct sunlight and moisture. The device should be handled with care to avoid mechanical stress, and it is recommended to use anti-static packaging and handling procedures to prevent ESD damage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LTL-30EFJ Overview

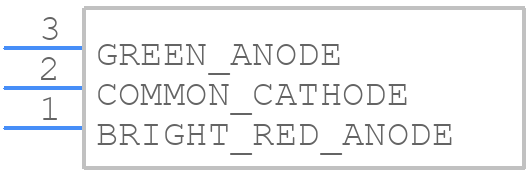

Use the download button to access the LTL-30EFJ schematic symbol and PCB footprint.
