LTM2810CY-I#PBF - Analog Devices

Description: Digital Isolators 7.5kV/Dig/I2C uMod ISO w Trans Drvr

Download LTM2810CY-I#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

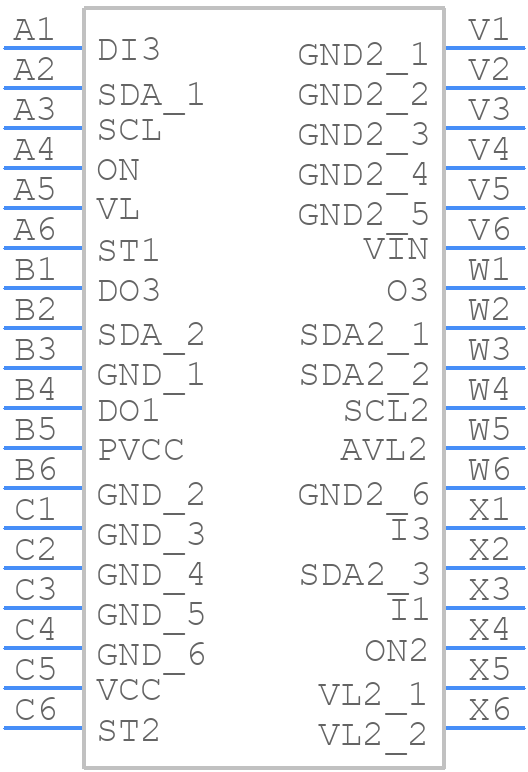

Symbol
LTM2810CY-I#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTM2810CY-I#PBF - Analog Devices PCB footprint - Other - Other - LTM2810CY-I#PBF-6
click to zoom
3D Models
LTM2810CY-I#PBF - Analog Devices - 3D model - Other - LTM2810CY-I#PBF-6
click to zoom

LTM2810CY-I#PBF Details

  • Manufacturer Part Number:

    LTM2810CY-I#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    05-08-1588

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-01-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PBGA-B36

  • Length:

    22 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.31 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.25 mm

LTM2810CY-I#PBF Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the LTM2810CY-I#PBF can be found in the application note AN136, which provides guidelines for layout, grounding, and decoupling to ensure optimal performance and minimize noise.
  • The selection of input and output capacitors depends on the specific application requirements. Analog Devices provides a capacitor selection guide in the datasheet, which recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. Additionally, the application note AN136 provides more detailed guidance on capacitor selection.
  • The LTM2810CY-I#PBF has an operating temperature range of -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may be affected at extreme temperatures, and additional thermal management may be required in high-temperature applications.
  • To ensure EMC with the LTM2810CY-I#PBF, follow the guidelines provided in the application note AN136, which recommends using shielding, filtering, and proper PCB layout to minimize electromagnetic interference (EMI). Additionally, Analog Devices provides EMC testing and certification information in the datasheet.
  • The recommended soldering process for the LTM2810CY-I#PBF is a reflow soldering process with a peak temperature of 260°C, as specified in the datasheet. It's essential to follow the recommended soldering profile to ensure reliable connections and prevent damage to the device.
