LTM2886CY-5I#PBF - Analog Devices

Description: n 6-Channel Logic Isolator: 2500VRMS for 1 Minute n UL-CSA Recognized File #E151738 n Isolated DC Power: n 3V to 5V Adjustable at Up to 100mA n ±5V Fixed at Up to 100mA n No External Components Required n SPI/Digital (LTM2886-S) or I2C (LTM2886-I) Options n High Common Mode Transient Immunity: 30kV/μs n High Speed Operation: n 10MHz Digital Isolation n 4MHz/8MHz SPI Isolation n 400kHz I2C Isolation Low Profile (15mm × 11.25mm × 3.42mm) BGA Package

Download LTM2886CY-5I#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

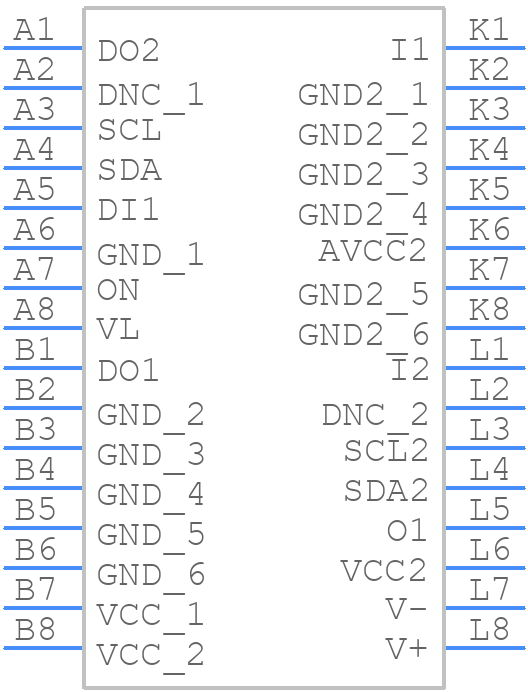

LTM2886CY-5I#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTM2886CY-5I#PBF - Analog Devices PCB footprint - BGA - BGA - BGA Package 32-Lead (15mm × 11.25mm × 3.42mm)
click to zoom
3D Models
LTM2886CY-5I#PBF - Analog Devices - 3D model - BGA - BGA Package 32-Lead (15mm × 11.25mm × 3.42mm)
click to zoom

LTM2886CY-5I#PBF Details

  • Manufacturer Part Number:

    LTM2886CY-5I#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    05-08-1851

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-XBGA-B32

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    LBGA

  • Package Equivalence Code:

    BGA32,8X11,50

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    245

  • Seated Height-Max:

    3.62 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    11.25 mm

LTM2886CY-5I#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTM2886 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces carrying high-frequency signals.
  • To ensure proper powering and decoupling of the LTM2886, use a high-quality power supply with low noise and ripple, and decouple the device with a 10uF ceramic capacitor and a 1uF film capacitor in parallel, placed as close as possible to the device's power pins.
  • The maximum cable length supported by the LTM2886 depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths of up to 10 meters for USB 2.0 and up to 3 meters for USB 3.0, assuming a good quality cable with proper shielding and termination.
  • The LTM2886 can be configured for a specific USB application by setting the appropriate values for the device's registers using the I2C interface. The specific configuration will depend on the application requirements, such as the USB speed, power mode, and device class. Refer to the device's datasheet and application notes for more information.
  • The LTM2886 has a maximum junction temperature of 125°C, and it's recommended to keep the device's temperature below 85°C for optimal performance and reliability. Ensure good airflow around the device, and consider using a heat sink or thermal pad if the device is expected to operate in a high-temperature environment.
