LTM2886HY-3S#PBF - Analog Devices

Description: 6-Channel Logic Isolator: 2500VRMS for 1 Minute n UL-CSA Recognized File #E151738 n Isolated DC Power: n 3V to 5V Adjustable at Up to 100mA n ±5V Fixed at Up to 100mA n No External Components Required n SPI/Digital (LTM2886-S) or I2C (LTM2886-I) Options n High Common Mode Transient Immunity: 30kV/μs n High Speed Operation: n 10MHz Digital Isolation n 4MHz/8MHz SPI Isolation n 400kHz I2C Isolation (15mm × 11.25mm × 3.42mm) BGA Package

Download LTM2886HY-3S#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

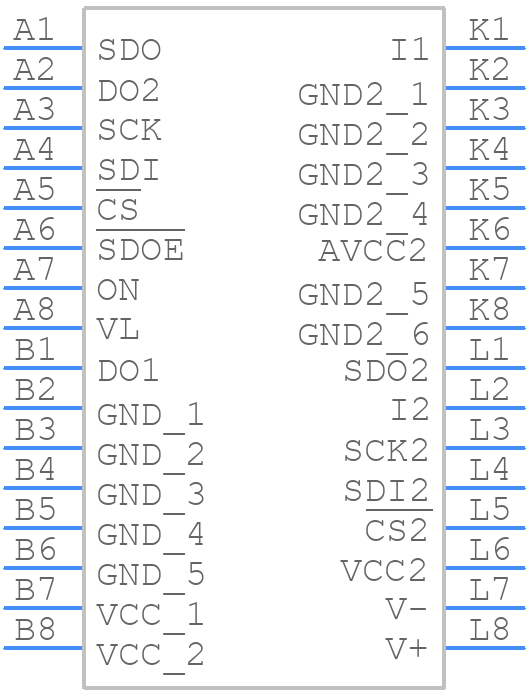

Symbol
LTM2886HY-3S#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTM2886HY-3S#PBF - Analog Devices PCB footprint - BGA - BGA - BGA Package 32-Lead (15mm × 11.25mm × 3.42mm)
click to zoom
3D Models
LTM2886HY-3S#PBF - Analog Devices - 3D model - BGA - BGA Package 32-Lead (15mm × 11.25mm × 3.42mm)
click to zoom

LTM2886HY-3S#PBF Details

  • Manufacturer Part Number:

    LTM2886HY-3S#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    05-08-1851

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-XBGA-B32

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    LBGA

  • Package Equivalence Code:

    BGA32,8X11,50

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    245

  • Seated Height-Max:

    3.62 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    11.25 mm

LTM2886HY-3S#PBF Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the LTM2886HY-3S#PBF can be found in the device's evaluation board documentation or by contacting Analog Devices' technical support. A good layout should prioritize signal integrity, minimize noise, and ensure proper thermal management.
  • To ensure reliable operation in high-temperature environments, follow the recommended operating conditions, ensure proper thermal management (e.g., heat sinking, airflow), and consider derating the device's performance according to the datasheet's thermal derating curves.
  • When using the LTM2886HY-3S#PBF in a system with multiple power domains, ensure that the device's power supply pins are connected to the correct power domain, and consider using level shifters or voltage translators if necessary. Also, be mindful of potential ground bounce and noise issues between domains.
  • While the LTM2886HY-3S#PBF is specified for 3.3V operation, it may be possible to use it with other voltage supplies within the device's absolute maximum ratings. However, this may affect the device's performance, and it is recommended to consult with Analog Devices' technical support or perform thorough testing to ensure reliable operation.
  • To troubleshoot issues with the LTM2886HY-3S#PBF, start by reviewing the device's datasheet and application notes, then check the PCB layout, power supply, and signal integrity. Use oscilloscopes or logic analyzers to debug the issue, and consider consulting with Analog Devices' technical support or seeking assistance from a qualified engineer.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTM2886HY-3S#PBF Overview

Use the download button to access the LTM2886HY-3S#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTM28, or try a keyword search, such as Other Interface ICs
