LTM2886IY-5I#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTM2886IY-5I#PBF - Digital Isolator, 2.5kV, 6 Channel, 300 ns, 4.5 V, 5.5 V, BGA, 32 Pins

Download LTM2886IY-5I#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

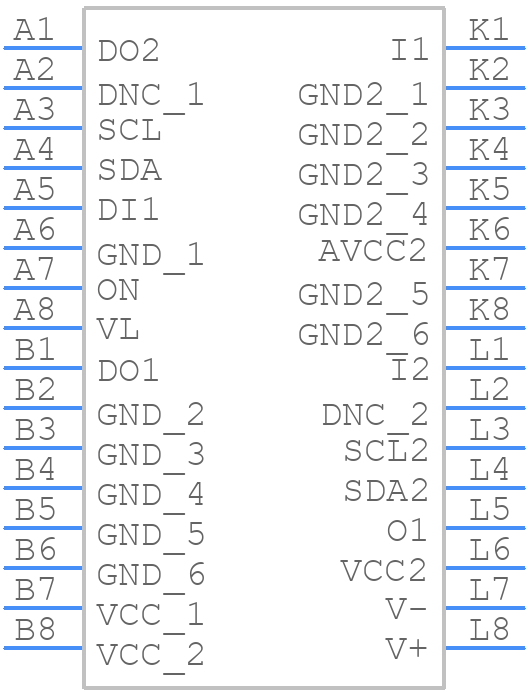

LTM2886IY-5I#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTM2886IY-5I#PBF - Analog Devices PCB footprint - BGA - BGA - 32-Lead (15mm x 11.25mm x 3.42mm)
click to zoom
3D Models
LTM2886IY-5I#PBF - Analog Devices - 3D model - BGA - 32-Lead (15mm x 11.25mm x 3.42mm)
click to zoom

LTM2886IY-5I#PBF Details

  • Manufacturer Part Number:

    LTM2886IY-5I#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    05-08-1851

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-XBGA-B32

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    LBGA

  • Package Equivalence Code:

    BGA32,8X11,50

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    245

  • Seated Height-Max:

    3.62 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    11.25 mm

LTM2886IY-5I#PBF Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using shielded cables for sensitive signals.
  • The LTM2886IY-5I#PBF requires a clean and stable power supply. Ensure that the power supply rails are well-decoupled using ceramic capacitors (e.g., 0.1uF and 10uF) and that the voltage regulator is properly bypassed. Additionally, follow the recommended power-up and power-down sequencing in the datasheet.
  • The maximum cable length supported by the LTM2886IY-5I#PBF depends on the specific application and the type of cable used. As a general guideline, Analog Devices recommends keeping cable lengths as short as possible (less than 1 meter) to minimize signal degradation and ensure reliable operation.
  • To troubleshoot issues with the LTM2886IY-5I#PBF, start by verifying the power supply and decoupling, then check the signal integrity and quality using an oscilloscope or logic analyzer. Ensure that the device is properly configured and that the communication protocol is correctly implemented. Consult the datasheet and application notes for specific troubleshooting guidelines.
  • The LTM2886IY-5I#PBF is a PCIe interface device, but it can be used in conjunction with other interfaces or protocols using external logic or microcontrollers. However, this may require additional circuitry and software development to ensure compatibility and proper operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTM2886IY-5I#PBF Overview

Use the download button to access the LTM2886IY-5I#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTM28, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
