- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LTM4600EV#PBF
- Part Number LTM4600EV#PBF
- Manufacturer Analog Devices
- Pin Count 104
- Part Category Integrated Circuit
- Package Category Other

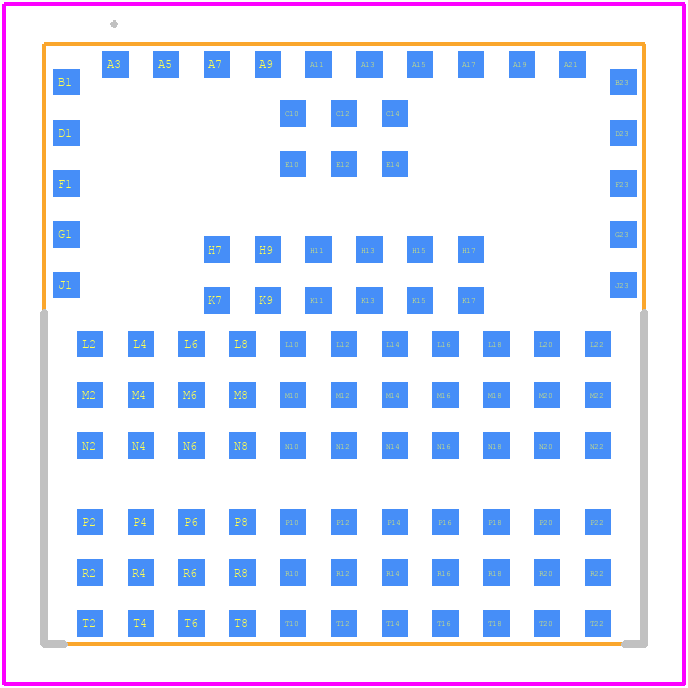

- Footprint Name Other - 104-Lead (15mm × 15mm × 2.82mm)
- Released Date Jul 16, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LTM4600EV#PBF Details
-
Manufacturer Part Number:
LTM4600EV#PBF
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Pin Count:
104
-
Manufacturer Package Code:
05-08-1800
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
LTM4600EV#PBF Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the switching components close to the IC and use a thermal relief pattern under the IC to improve heat dissipation.
-
Choose an input capacitor with low ESR and high ripple current rating. A 10uF to 22uF ceramic capacitor with X5R or X7R dielectric is recommended. Ensure the capacitor is placed close to the VIN pin and connected to a low-impedance ground plane.
-
Choose an output capacitor with low ESR and high ripple current rating. A 10uF to 22uF ceramic capacitor with X5R or X7R dielectric is recommended. Ensure the capacitor is placed close to the VOUT pin and connected to a low-impedance ground plane.
-
The output voltage can be set using the FB pin and an external resistor divider network. The resistor values can be calculated using the formula: R1 = (VOUT - 0.6) / (0.6 / R2), where R1 and R2 are the resistors in the divider network.
-
The maximum ambient temperature for the LTM4600 is 85°C. However, the IC can operate up to 125°C junction temperature. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.
Trust Checks
Expert Contribution
System Verified
Community Approved
LTM4600EV#PBF Overview
Use the download button to access the LTM4600EV#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTM46,
or try a keyword search, such as Switching Regulator or Controllers
