LTM4601HVEY#PBF - Analog Devices

Description: 12A 28VIN DC/DC µModule (Power Module) Regulator with PLL, Output Tracking and Margining

Download LTM4601HVEY#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LTM4601HVEY#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

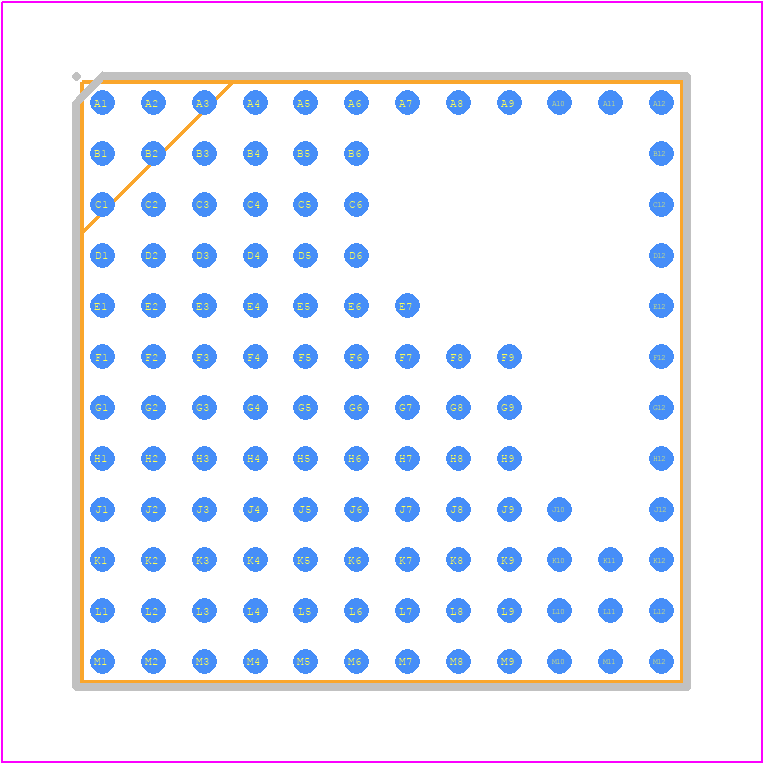

LTM4601HVEY#PBF - Analog Devices PCB footprint - BGA - BGA - BGA Package 118-Lead (15mm × 15mm × 3.42mm)
click to zoom
3D Models
LTM4601HVEY#PBF - Analog Devices - 3D model - BGA - BGA Package 118-Lead (15mm × 15mm × 3.42mm)
click to zoom

LTM4601HVEY#PBF Details

  • Manufacturer Part Number:

    LTM4601HVEY#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    15 X 15 MM, 3.42 MM HEIGHT, ROHS COMPLIANT, PLASTIC, MS-028, BGA-118

  • Pin Count:

    118

  • Manufacturer Package Code:

    05-08-1903

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OUTPUT VOLTAGE RANGE FROM 0.6 VOLT TO 5 VOLT

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    28 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PBGA-B118

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    118

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    12 A

  • Output Voltage-Max:

    5 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    245

  • Seated Height-Max:

    3.62 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    850 kHz

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    15 mm

LTM4601HVEY#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the LTM4601HVEY#PBF near a thermal pad or a heat sink, and ensuring that the thermal vias are connected to a solid copper plane on the bottom layer of the PCB. Additionally, keeping the component placement and routing symmetrical can help to reduce thermal gradients.
  • The selection of input and output capacitors depends on the specific requirements of your application, such as the input voltage range, output voltage, and ripple current. In general, low-ESR capacitors with high ripple current ratings are recommended. The datasheet provides guidelines for capacitor selection, but it's also recommended to consult with capacitor manufacturers for specific recommendations.
  • The maximum ambient temperature that the LTM4601HVEY#PBF can operate in is 85°C, but this can be derated based on the specific application and thermal design. It's recommended to consult with the datasheet and thermal design guidelines to ensure that the device operates within its recommended temperature range.
  • The LTM4601HVEY#PBF has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The datasheet provides a detailed description of the overcurrent protection circuit and the recommended component values.
  • The recommended startup sequence for the LTM4601HVEY#PBF involves applying the input voltage, followed by the enable signal, and then the output voltage. This sequence helps to ensure that the device starts up correctly and avoids any potential latch-up or damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
