LTM4605IV#PBF - Analog Devices

Description: Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 16V 5A 4.5V - 20V Input

Download LTM4605IV#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LTM4605IV#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

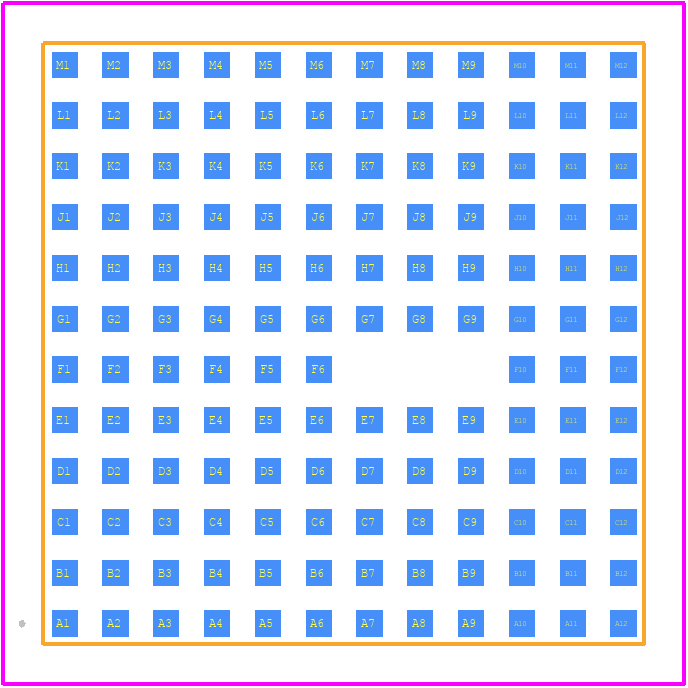

LTM4605IV#PBF - Analog Devices PCB footprint - Other - Other - LGA/CASON/CH ARRY SO NO LD_2023-18
click to zoom
3D Models
LTM4605IV#PBF - Analog Devices - 3D model - Other - LGA/CASON/CH ARRY SO NO LD_2023-18
click to zoom

LTM4605IV#PBF Details

  • Manufacturer Part Number:

    LTM4605IV#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    15 X 15 MM, 2.82 MM HEIGHT, ROHS COMPLIANT, LGA-141

  • Pin Count:

    141

  • Manufacturer Package Code:

    05-08-1815

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 0.8V TO 16 V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PBGA-B141

  • JESD-609 Code:

    e4

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    141

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    16 V

  • Output Voltage-Min:

    0.8 V

  • Output Voltage-Nom:

    6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.92 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    440 kHz

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    BUTT

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    15 mm

LTM4605IV#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LTM4605IV#PBF is 15V, but it's recommended to operate within the specified input voltage range of 3.5V to 14V for optimal performance and reliability.
  • To ensure the LTM4605IV#PBF operates within a specific temperature range, you can use thermal management techniques such as heat sinks, thermal interfaces, and airflow management. Additionally, you can monitor the device's temperature using the thermal monitoring pin (TMP) and adjust the system design accordingly.
  • For optimal performance and minimal noise and EMI, it's recommended to follow a 4-layer PCB stack-up with a solid ground plane, keep the input and output traces separate, and use a star-configuration for the power and ground connections. Additionally, use shielding and filtering components as needed to minimize EMI.
  • When selecting output capacitors for the LTM4605IV#PBF, consider the output voltage, output current, and ripple requirements. Choose capacitors with a high ripple current rating, low ESR, and a voltage rating that exceeds the maximum output voltage. A minimum of 10uF to 22uF output capacitance is recommended.
  • A minimum of 10uF to 22uF input capacitance is recommended, with a voltage rating that exceeds the maximum input voltage. Use a low-ESR capacitor such as a ceramic or film capacitor, and place it as close to the input pins as possible to minimize noise and ripple.
