LTM4606IY#PBF - Analog Devices

Description: Switching Voltage Regulators Ultralow EMI 28VIN, 6A DC/DC Module R

Download LTM4606IY#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LTM4606IY#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

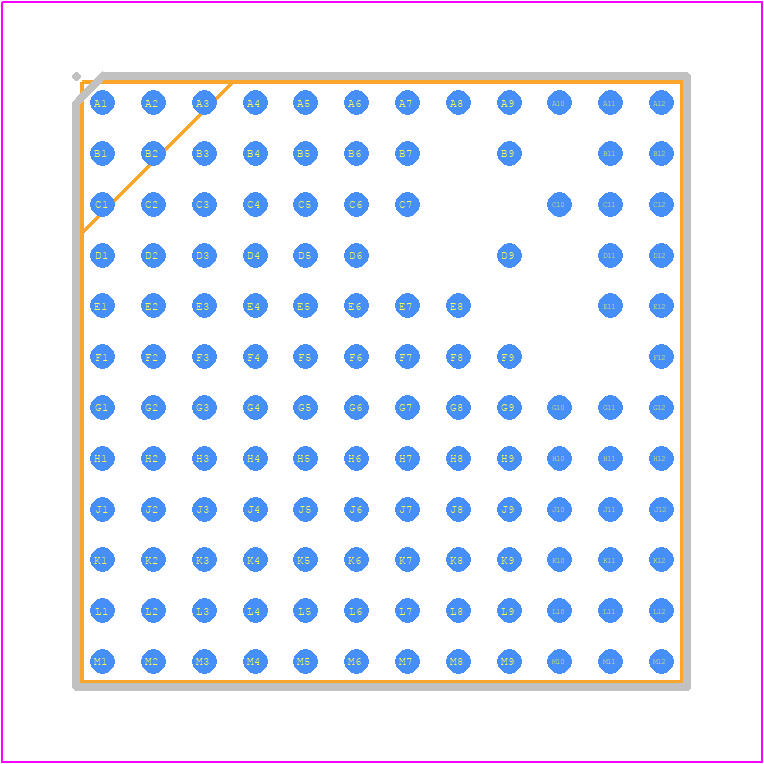

LTM4606IY#PBF - Analog Devices PCB footprint - BGA - BGA - LTM4606IY#PBF
click to zoom
3D Models
LTM4606IY#PBF - Analog Devices - 3D model - BGA - LTM4606IY#PBF
click to zoom

LTM4606IY#PBF Details

  • Manufacturer Part Number:

    LTM4606IY#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-133

  • Pin Count:

    133

  • Manufacturer Package Code:

    05-08-1943

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OUTPUT VOLTAGE RANGE FROM 0.6 VOLT TO 5 VOLT

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    28 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PBGA-B133

  • JESD-609 Code:

    e1

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    133

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6 A

  • Output Voltage-Max:

    5 V

  • Output Voltage-Min:

    0.6 V

  • Output Voltage-Nom:

    1.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA133,12X12,50

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Seated Height-Max:

    3.62 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    800 kHz

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Width:

    15 mm

LTM4606IY#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the LTM4606IY#PBF near a thermal pad or a heat sink, and ensuring that the thermal vias are connected to a solid copper plane on the bottom layer of the PCB. Additionally, keeping the high-current paths short and wide can help reduce thermal resistance.
  • The selection of input and output capacitors depends on the specific requirements of your application. For the LTM4606IY#PBF, a low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the input capacitor, while a 10uF to 47uF capacitor with a low ESL is recommended for the output capacitor. The capacitor selection should also consider the voltage rating, ripple current, and temperature range.
  • The LTM4606IY#PBF has a maximum ambient temperature rating of 85°C, but the device can operate reliably up to 105°C with derating. However, it's recommended to keep the ambient temperature below 80°C for optimal performance and reliability.
  • To troubleshoot common issues like output voltage sag or oscillation, check the input voltage, output load, and PCB layout. Ensure that the input voltage is within the recommended range, the output load is within the specified current limit, and the PCB layout is optimized for thermal performance. Also, check for any signs of overheating, and verify that the output capacitor is properly selected and placed.
  • The LTM4606IY#PBF is a commercial-grade device, but it can be used in high-reliability or aerospace applications with proper qualification and testing. It's recommended to consult with Analog Devices Inc for specific guidance on using the device in such applications, and to ensure that the device meets the required standards and regulations.
