LTM4620MPY - Analog Devices

LTM4620MPY Details

• Manufacturer Part Number:

  LTM4620MPY

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Part Life Cycle Code:

  Active

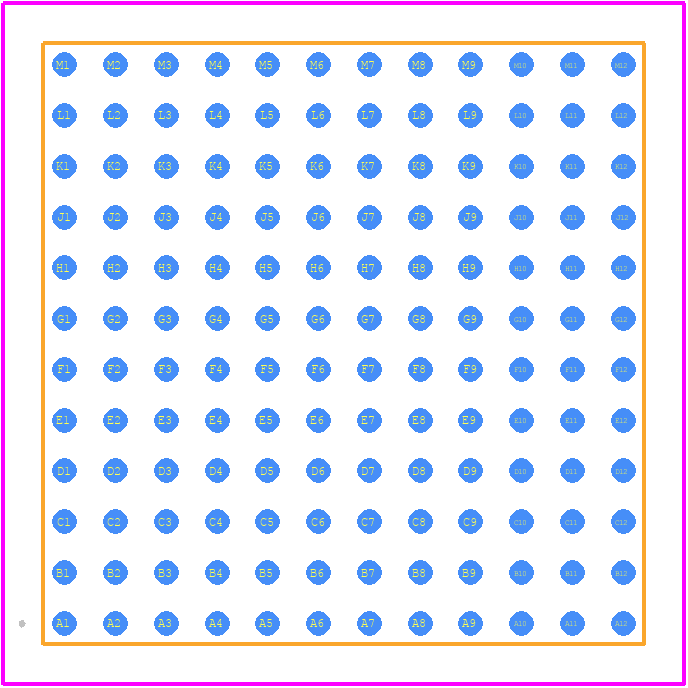

• Package Description:

  BGA-144

• Pin Count:

  144

• Manufacturer Package Code:

  05-08-1880

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Analog IC - Other Type:

  DUAL SWITCHING CONTROLLER

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  16 V

• Input Voltage-Min:

  4.5 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  S-PBGA-B144

• JESD-609 Code:

  e0

• Length:

  15 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  144

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Output Current-Max:

  13 A

• Output Voltage-Max:

  2.5 V

• Output Voltage-Min:

  0.6 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Equivalence Code:

  BGA144,12X12,50

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Peak Reflow Temperature (Cel):

  245

• Seated Height-Max:

  5.21 mm

• Surface Mount:

  YES

• Switcher Configuration:

  PHASE-SHIFT

• Switching Frequency-Max:

  860 kHz

• Technology:

  HYBRID

• Temperature Grade:

  MILITARY

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  BALL

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  BOTTOM

• Width:

  15 mm
