Part Image

LTM4623EV#PBF - Analog Devices

Description: Switching Voltage Regulators Ultrathin 20VIN, 3A Buck DC/DC Module

Download LTM4623EV#PBF Model

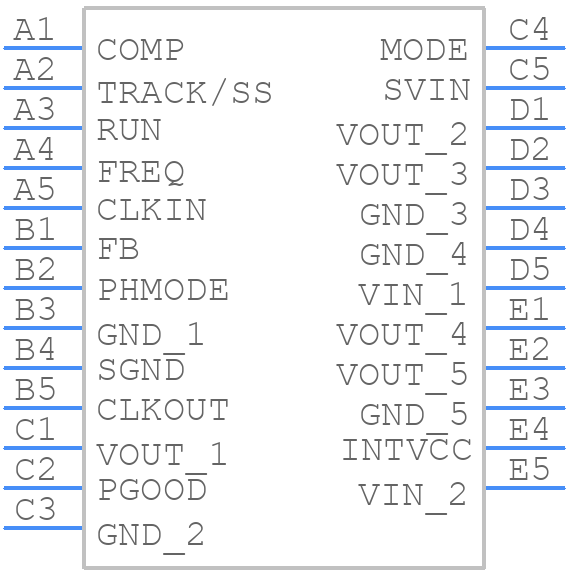

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTM4623EV#PBF - Analog Devices PCB footprint - Land Grid Array Circular Lead - Land Grid Array Circular Lead - 25LEAD-LGA(05-08-1949)
click to zoom
3D Models
LTM4623EV#PBF - Analog Devices  - 3D model - Land Grid Array Circular Lead - 25LEAD-LGA(05-08-1949)
click to zoom

LTM4623EV#PBF Details

  • Manufacturer Part Number:

    LTM4623EV#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LGA-25

  • Pin Count:

    25

  • Manufacturer Package Code:

    05-08-1949

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Malaysia

  • Manufacturer:

    Analog Devices Inc

  • Risk Rank:

    2.14

  • YTEOL:

    8.5

  • Additional Feature:

    ADJUSTABLE MODE FROM 0.6 TO 5.5V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PBGA-N25

  • JESD-609 Code:

    e4

  • Length:

    6.25 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    25

  • Operating Temperature-Max:

    125 °C

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.92 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1000 kHz

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.25 mm

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

LTM4623EV#PBF Overview

Use the download button to access the LTM4623EV#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTM46, or try a keyword search, such as Switching Regulator or Controllers
