LTM4628EV#PBF - Analog Devices

LTM4628EV#PBF Details

• Manufacturer Part Number:

  LTM4628EV#PBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

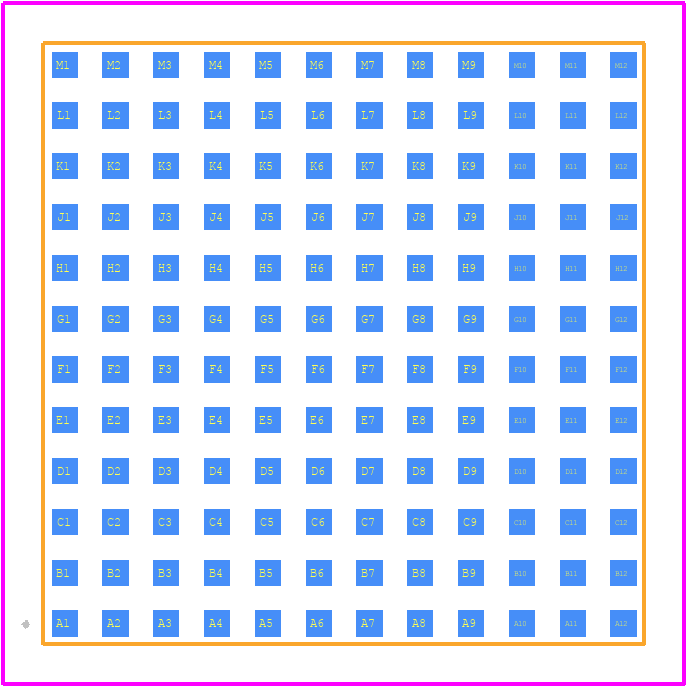

• Package Description:

  15 X 15 MM, 4.32 MM HEIGHT, ROHS COMPLIANT, MO-222, LGA-144

• Pin Count:

  144

• Manufacturer Package Code:

  05-08-1843

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Additional Feature:

  ALSO OPERATES IN ADJUSTABLE MODE FROM 0.6V TO 5.5V

• Analog IC - Other Type:

  DUAL SWITCHING CONTROLLER

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  26.5 V

• Input Voltage-Min:

  4.5 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  S-PBGA-N144

• JESD-609 Code:

  e4

• Length:

  15 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  144

• Operating Temperature-Max:

  125 °C

• Output Current-Max:

  0.1 A

• Output Voltage-Max:

  5.5 V

• Output Voltage-Min:

  0.6 V

• Output Voltage-Nom:

  1.5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LGA

• Package Equivalence Code:

  LGA144,12X12,50

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Peak Reflow Temperature (Cel):

  245

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.42 mm

• Surface Mount:

  YES

• Switcher Configuration:

  PHASE-SHIFT

• Switching Frequency-Max:

  780 kHz

• Technology:

  HYBRID

• Temperature Grade:

  OTHER

• Terminal Finish:

  Gold (Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  15 mm
