LTM4630AEV#PBF - Analog Devices

LTM4630AEV#PBF Details

• Manufacturer Part Number:

  LTM4630AEV#PBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

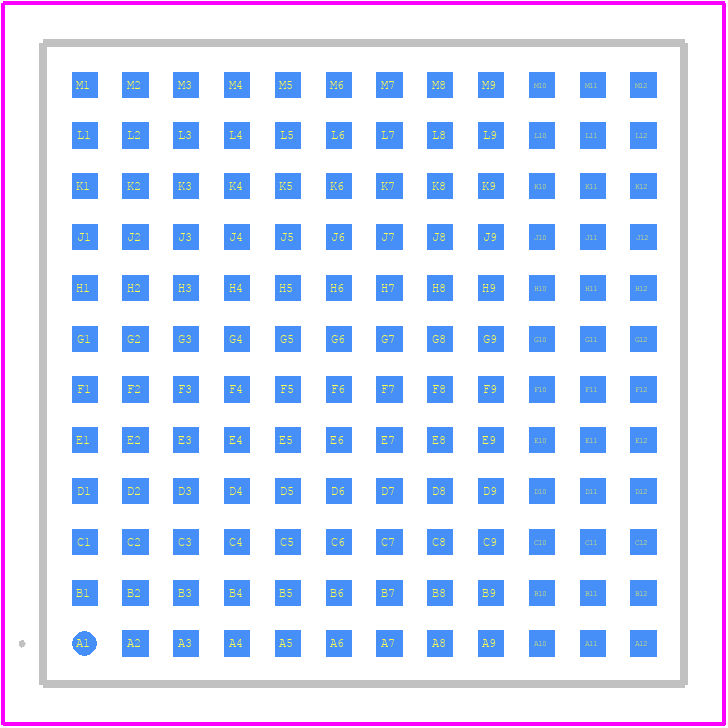

• Package Description:

  LGA-144

• Pin Count:

  144

• Manufacturer Package Code:

  05-08-1901

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Additional Feature:

  OUTPUT VOLTAGE RANGE FROM 0.6 VOLT TO 5.3 VOLT

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  15 V

• Input Voltage-Min:

  4.5 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  S-XBGA-N144

• Length:

  16 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  144

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  36 A

• Output Voltage-Max:

  8 V

• Output Voltage-Min:

  0.6 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  LGA

• Package Equivalence Code:

  LGA144,12X12,50

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Peak Reflow Temperature (Cel):

  245

• Seated Height-Max:

  4.51 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  780 kHz

• Technology:

  HYBRID

• Temperature Grade:

  AUTOMOTIVE

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  16 mm
