LTM4643IY - Analog Devices

Description: Switching Voltage Regulators [Tin-Lead SnPb BGA] Ultrathin Quad Module Regulator with Configurable 3A Output Array

Download LTM4643IY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LTM4643IY - Analog Devices - PCB symbol
click to zoom
PCB Footprints

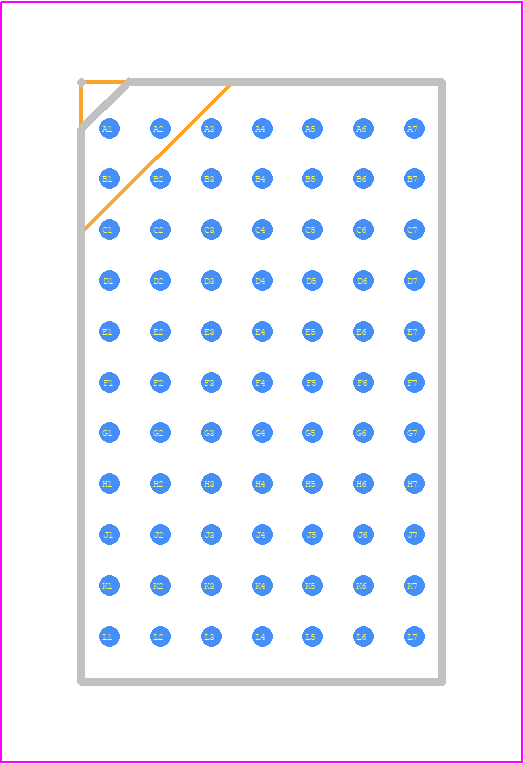

LTM4643IY - Analog Devices PCB footprint - BGA - BGA - BGA Package 77-Lead (15.00mm × 9.00mm × 2.42mm)-ren1
click to zoom
3D Models
LTM4643IY - Analog Devices - 3D model - BGA - BGA Package 77-Lead (15.00mm × 9.00mm × 2.42mm)-ren1
click to zoom

LTM4643IY Details

  • Manufacturer Part Number:

    LTM4643IY

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-77

  • Pin Count:

    77

  • Manufacturer Package Code:

    05-08-1559

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 0.6 TO 3.3V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PBGA-B77

  • JESD-609 Code:

    e0

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    77

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    3.3 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Seated Height-Max:

    2.62 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1200 kHz

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Width:

    9 mm

LTM4643IY Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The top layer should have a wide copper pour connected to the GND pin, and the bottom layer should have a solid ground plane. This layout helps to dissipate heat efficiently.
  • Use the output filter design tool provided by Analog Devices or follow the guidelines in the datasheet. A good starting point is to use a 10uH inductor and a 10uF capacitor. Adjust the values based on the specific application requirements and desired ripple and noise performance.
  • The LTM4643IY can drive up to 10uF of capacitive load. However, it's recommended to limit the capacitive load to 4.7uF or less to ensure stability and optimal performance.
  • Use a soft-start circuit to limit the inrush current during start-up. A simple RC circuit with a 1kΩ resistor and a 10uF capacitor can be used. For shutdown, use a voltage supervisor or a reset IC to ensure a clean shutdown sequence.
  • Use a low-ESR ceramic capacitor with a value of 10uF to 22uF. X5R or X7R dielectric capacitors are recommended. Avoid using electrolytic capacitors due to their high ESR and limited lifespan.
