LTM4664AIY#PBF - Analog Devices

Description: 30V to 58V Input, Dual 30A, Single 60A μModule Regulator with Digital Power System Management

Download LTM4664AIY#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LTM4664AIY#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

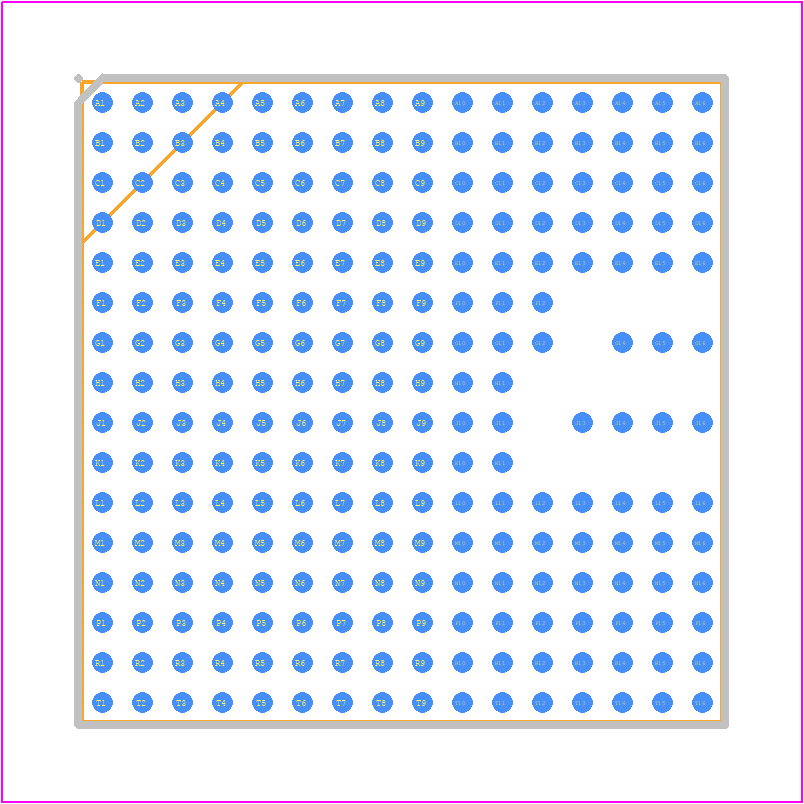

LTM4664AIY#PBF - Analog Devices PCB footprint - BGA - BGA - CHIP SCALE BGA
click to zoom
3D Models
LTM4664AIY#PBF - Analog Devices - 3D model - BGA - CHIP SCALE BGA
click to zoom

LTM4664AIY#PBF Details

  • Manufacturer Part Number:

    LTM4664AIY#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-240

  • Pin Count:

    240

  • Manufacturer Package Code:

    05-08-1567

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    58 V

  • Input Voltage-Min:

    30 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    S-PBGA-B240

  • Length:

    16 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    240

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    30 A

  • Output Voltage-Max:

    1.5 V

  • Output Voltage-Min:

    0.5 V

  • Output Voltage-Nom:

    1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA240,16X16,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Seated Height-Max:

    8.03 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1000 kHz

  • Technology:

    HYBRID

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    16 mm

LTM4664AIY#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device on a thick copper plane, using thermal vias to connect the plane to the device's thermal pad, and keeping the surrounding area clear of other components to allow for good airflow. Refer to the application note AN136 for more details.
  • The selection of input and output capacitors depends on the specific requirements of your application, such as the input voltage range, output voltage, and ripple current. A good starting point is to use the recommended capacitor values in the datasheet, and then adjust based on your specific requirements. It's also important to consider the capacitor's ESR, ESL, and ripple current rating.
  • The maximum ambient temperature that the LTM4664AIY#PBF can operate in is 85°C. However, the device's performance and reliability may be affected at high temperatures, so it's recommended to derate the device's specifications accordingly.
  • Yes, the LTM4664AIY#PBF is a high-reliability device that is suitable for use in aerospace and other high-reliability applications. It is manufactured using a robust process and is screened to ensure high reliability. However, it's recommended to consult with Analog Devices Inc's quality and reliability team to ensure that the device meets the specific requirements of your application.
  • Troubleshooting issues with the LTM4664AIY#PBF involves a systematic approach to identify the root cause of the problem. Start by checking the device's input and output voltages, and then verify that the device is properly configured and laid out on the PCB. Consult the datasheet and application notes for guidance on troubleshooting common issues, and contact Analog Devices Inc's technical support team if necessary.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTM4664AIY#PBF Overview

Use the download button to access the LTM4664AIY#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTM46, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
