LTM4670EY#PBF - Analog Devices

LTM4670EY#PBF Details

• Manufacturer Part Number:

  LTM4670EY#PBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

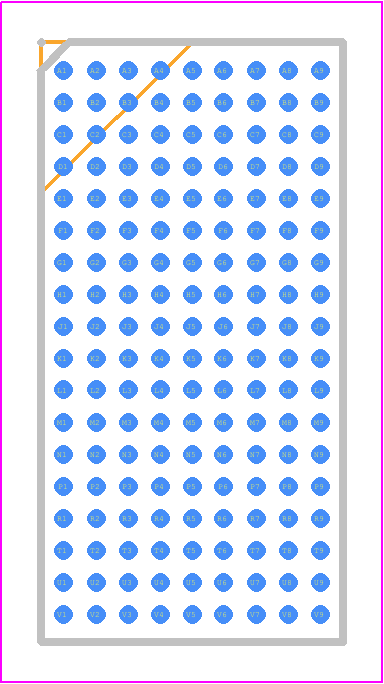

• Package Description:

  BGA-162

• Pin Count:

  162

• Manufacturer Package Code:

  05-08-1646

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  5.5 V

• Input Voltage-Min:

  2.25 V

• Input Voltage-Nom:

  3.3 V

• JESD-30 Code:

  R-PBGA-B162

• Length:

  15 mm

• Moisture Sensitivity Level:

  4

• Number of Functions:

  1

• Number of Terminals:

  162

• Operating Temperature-Max:

  125 °C

• Output Current-Max:

  40 A

• Output Voltage-Max:

  5.5 V

• Output Voltage-Min:

  0.5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY, LOW PROFILE, FINE PITCH

• Seated Height-Max:

  4.84 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  2200 kHz

• Technology:

  HYBRID

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Width:

  7.5 mm
