LTM4670IY#PBF - Analog Devices

Description: Low VIN, Quad μModule Regulator with Configurable 10A Output Array

Download LTM4670IY#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LTM4670IY#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

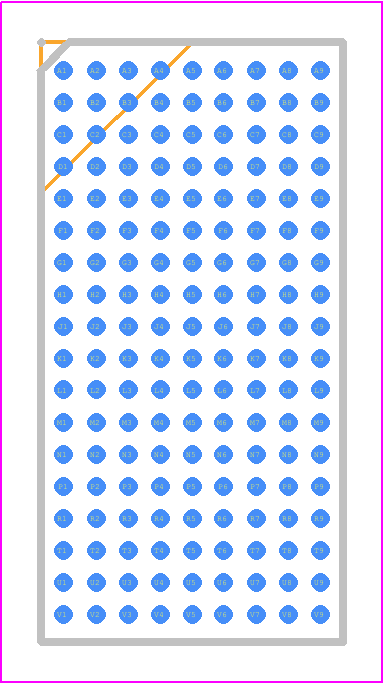

LTM4670IY#PBF - Analog Devices PCB footprint - BGA - BGA - CHIP SCALE BGA
click to zoom
3D Models
LTM4670IY#PBF - Analog Devices - 3D model - BGA - CHIP SCALE BGA
click to zoom

LTM4670IY#PBF Details

  • Manufacturer Part Number:

    LTM4670IY#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-162

  • Pin Count:

    162

  • Manufacturer Package Code:

    05-08-1646

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.25 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    R-PBGA-B162

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    162

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    40 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    0.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Seated Height-Max:

    4.84 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2200 kHz

  • Technology:

    HYBRID

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    7.5 mm

LTM4670IY#PBF Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LTM4670IY#PBF is -40°C to 125°C.
  • To ensure proper power-up and configuration, follow the recommended power-up sequence and configuration guidelines outlined in the datasheet, and make sure to meet the minimum input voltage and current requirements.
  • For optimal performance and thermal management, follow the recommended PCB layout guidelines in the datasheet, and ensure good thermal conductivity and heat dissipation through the use of thermal vias, heat sinks, and thermal interface materials.
  • To troubleshoot common issues, refer to the datasheet's troubleshooting section, and check for proper power-up sequencing, input voltage and current, output loading, and thermal management. Use oscilloscopes and other diagnostic tools to identify and isolate the issue.
  • The recommended input and output capacitors for the LTM4670IY#PBF are X5R or X7R ceramic capacitors with a voltage rating of 10V or higher, and a capacitance value of 10uF to 22uF.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTM4670IY#PBF Overview

Use the download button to access the LTM4670IY#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTM46, or try a keyword search, such as Switching Regulator or Controllers
