LTM4675EY#PBF - Analog Devices

LTM4675EY#PBF Details

• Manufacturer Part Number:

  LTM4675EY#PBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

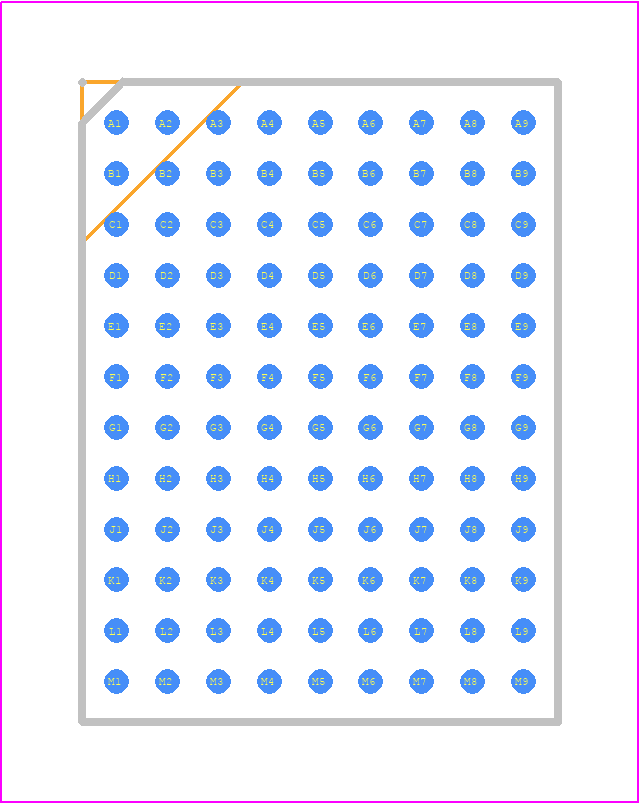

• Package Description:

  BGA-108

• Pin Count:

  108

• Manufacturer Package Code:

  05-08-1931

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Additional Feature:

  OTHER SUPPLY VOLTAGE IS 5.75V TO 17 V AND NOMINAL IS 12 V

• Adjustable Threshold:

  YES

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  17 V

• Input Voltage-Min:

  4.5 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-PBGA-B108

• Length:

  16 mm

• Moisture Sensitivity Level:

  4

• Number of Channels:

  4

• Number of Functions:

  1

• Number of Terminals:

  108

• Operating Temperature-Max:

  125 °C

• Output Current-Max:

  9 A

• Output Voltage-Max:

  5.5 V

• Output Voltage-Min:

  0.5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Equivalence Code:

  BGA108,9X12,50

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY

• Peak Reflow Temperature (Cel):

  245

• Seated Height-Max:

  3.71 mm

• Supply Voltage-Max (Vsup):

  5.75 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  537.5 kHz

• Technology:

  HYBRID

• Temperature Grade:

  AUTOMOTIVE

• Terminal Form:

  BALL

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  11.9 mm
