LTM4681IY#PBF - Analog Devices

Description: Quad 31.25A or Single 125A μModule Regulator with Digital Power System Management

Download LTM4681IY#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LTM4681IY#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

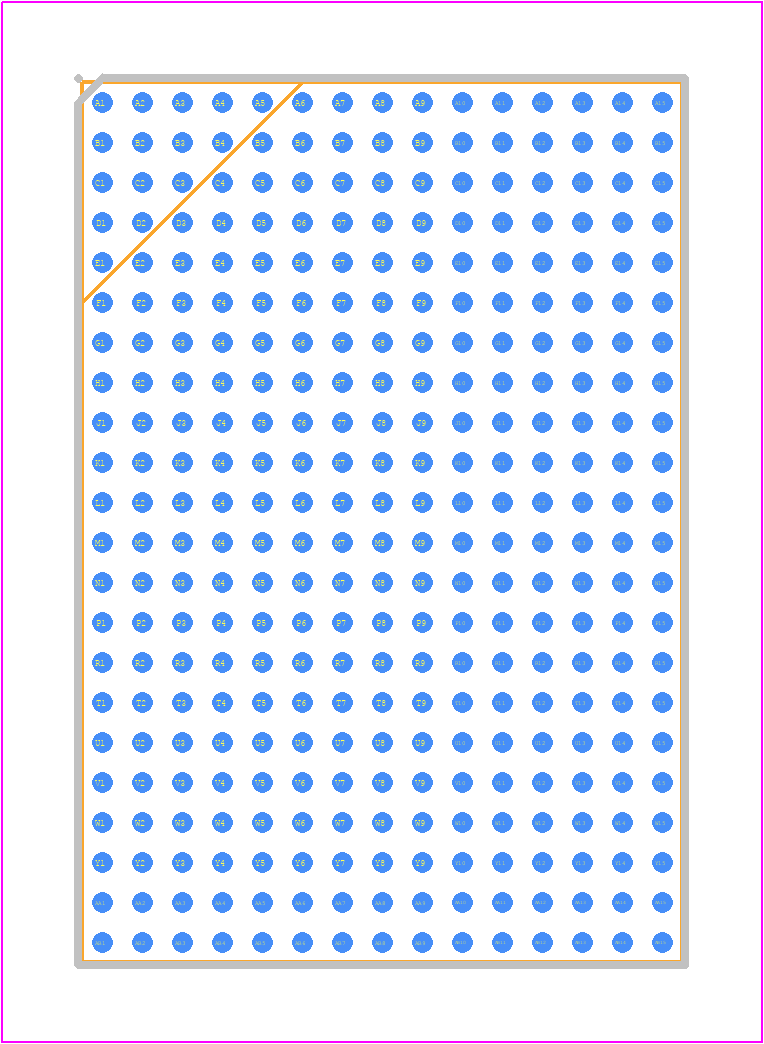

LTM4681IY#PBF - Analog Devices PCB footprint - BGA - BGA - BGA Package 330-Lead (22mm × 15mm × 8.17mm)
click to zoom
3D Models
LTM4681IY#PBF - Analog Devices - 3D model - BGA - BGA Package 330-Lead (22mm × 15mm × 8.17mm)
click to zoom

LTM4681IY#PBF Details

  • Manufacturer Part Number:

    LTM4681IY#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-330

  • Pin Count:

    330

  • Manufacturer Package Code:

    05-08-1654

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PBGA-B330

  • Length:

    22 mm

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    330

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    31.25 A

  • Output Voltage-Max:

    3.3 V

  • Output Voltage-Min:

    0.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Seated Height-Max:

    8.57 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    575 kHz

  • Technology:

    HYBRID

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    15 mm

LTM4681IY#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the thermal pad connected to the ground plane and ensure good thermal conduction to the heat sink.
  • Use the provided filter design equations in the datasheet and optimize the component values for the specific application. Consider using a combination of ceramic and electrolytic capacitors for optimal performance.
  • The maximum allowed input voltage is 5.5V, but it's recommended to operate within the specified input voltage range of 2.7V to 5.5V for optimal performance and reliability.
  • Ensure a monotonic power-up and power-down sequence, and add a soft-start circuit to limit the inrush current. Also, add a capacitor to the EN pin to filter out noise and ensure reliable start-up.
  • Use a common-mode choke and a differential-mode filter capacitor to reduce EMI emissions. Follow the recommended layout guidelines and use a shielded inductor to minimize radiation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTM4681IY#PBF Overview

Use the download button to access the LTM4681IY#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTM46, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
