LTM4682IY - Analog Devices

LTM4682IY Details

• Manufacturer Part Number:

  LTM4682IY

• Part Life Cycle Code:

  Active

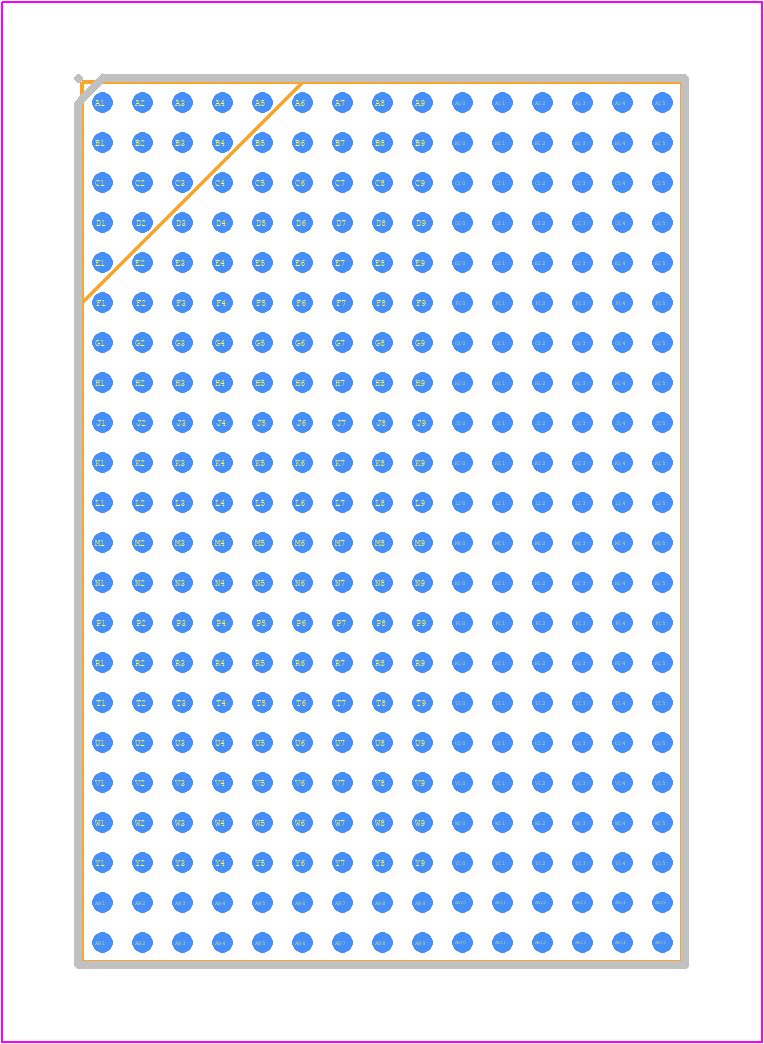

• Package Description:

  BGA-330

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Analog Devices Inc

• Analog IC - Other Type:

  SWITCHING REGULATOR WITH BUILT IN INDUCTOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  16 V

• Input Voltage-Min:

  4.5 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-PBGA-B330

• Length:

  22 mm

• Moisture Sensitivity Level:

  4

• Number of Functions:

  1

• Number of Terminals:

  330

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  125 A

• Output Voltage-Max:

  1.35 V

• Output Voltage-Min:

  0.7 V

• Output Voltage-Nom:

  0.75 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Equivalence Code:

  BGA330,15X22,40

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY

• Seated Height-Max:

  6 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  1075 kHz

• Technology:

  HYBRID

• Terminal Form:

  BALL

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Width:

  15 mm
