LTM8002IY-3.3#PBF - Analog Devices

Description: Switching Voltage Regulators 40VIN, 2.5A Silent Switcher Module Regulator

Download LTM8002IY-3.3#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

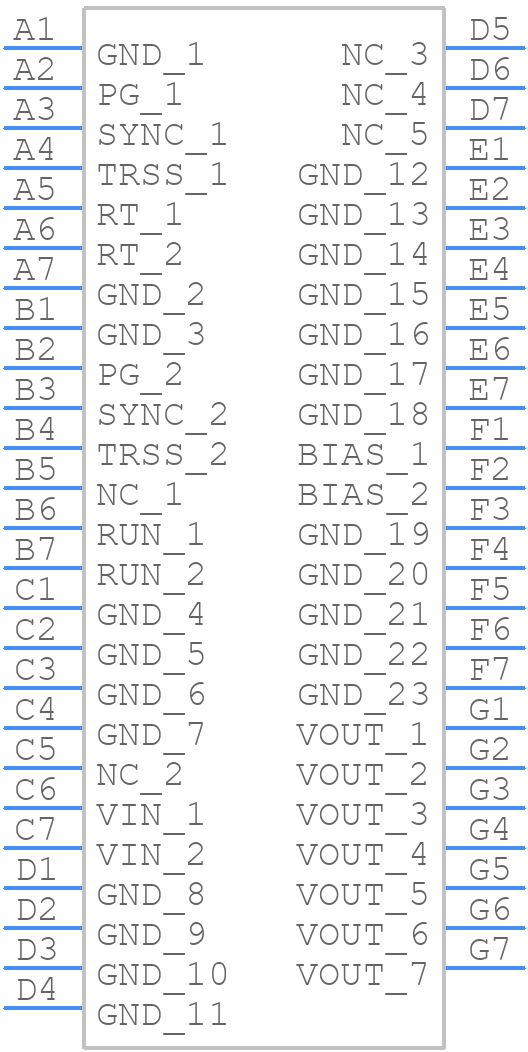

LTM8002IY-3.3#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTM8002IY-3.3#PBF - Analog Devices PCB footprint - BGA - BGA - 49-Lead (6.25mm × 6.25mm × 2.22mm)_2021
click to zoom
3D Models
LTM8002IY-3.3#PBF - Analog Devices - 3D model - BGA - 49-Lead (6.25mm × 6.25mm × 2.22mm)_2021
click to zoom

LTM8002IY-3.3#PBF Details

  • Manufacturer Part Number:

    LTM8002IY-3.3#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-49

  • Pin Count:

    49

  • Manufacturer Package Code:

    05-08-1518

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-04-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    3.4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PBGA-B49

  • Length:

    6.25 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    49

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.5 A

  • Output Voltage-Max:

    18 V

  • Output Voltage-Min:

    0.97 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA49,7X7,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Seated Height-Max:

    2.42 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    3000 kHz

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    6.25 mm

LTM8002IY-3.3#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTM8002IY-3.3#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and improve thermal performance.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, make sure to decouple the input and output pins with suitable capacitors, and use a low-ESR output capacitor to minimize ringing. Also, ensure that the input voltage is within the recommended range, and the output current is within the specified limits.
  • The LTM8002IY-3.3#PBF can operate in an ambient temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at higher temperatures, so it's recommended to keep the ambient temperature below 85°C for optimal performance.
  • Yes, the LTM8002IY-3.3#PBF is suitable for high-reliability and aerospace applications. It's manufactured using a high-reliability process, and it's qualified to various industry standards, including MIL-PRF-38535 and AEC-Q100. However, it's essential to follow the recommended design and manufacturing guidelines to ensure the device meets the required reliability and performance standards.
  • To troubleshoot issues with the LTM8002IY-3.3#PBF, start by verifying the input voltage, output voltage, and output current. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to check for any oscillations or noise on the input and output pins. If the issue persists, consult the datasheet and application notes for guidance, or contact Analog Devices' technical support team for assistance.
