LTM8003HY#PBF - Analog Devices

Description: Switching Voltage Regulators 40VIN, 3.5A Step-Down µModule Regulator. 100% cold test

Download LTM8003HY#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

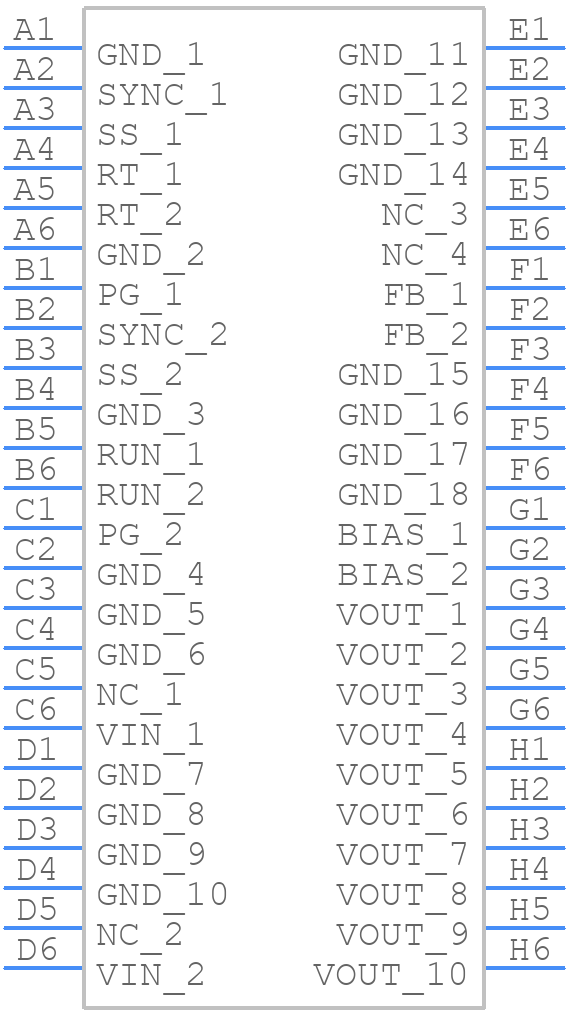

LTM8003HY#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTM8003HY#PBF - Analog Devices PCB footprint - BGA - BGA - 48-Lead (9mm × 6.25mm × 3.32mm)
click to zoom
3D Models
LTM8003HY#PBF - Analog Devices - 3D model - BGA - 48-Lead (9mm × 6.25mm × 3.32mm)
click to zoom

LTM8003HY#PBF Details

  • Manufacturer Part Number:

    LTM8003HY#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    05-08-1999

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    OPERATES IN ADJUSTABLE MODE FROM 0.97 TO 18V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    3.4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PBGA-B48

  • Length:

    9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.5 A

  • Output Voltage-Max:

    18 V

  • Output Voltage-Min:

    0.97 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA48,6x8,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    250

  • Seated Height-Max:

    3.52 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    3000 kHz

  • Technology:

    HYBRID

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.25 mm

LTM8003HY#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTM8003HY involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the device's output should be decoupled from the input using a ferrite bead or a resistor.
  • The LTM8003HY is rated for operation from -40°C to 125°C. However, the device's performance may degrade at higher temperatures, and the output voltage may droop. It's essential to ensure good thermal management and heat sinking to maintain optimal performance.
  • Yes, the LTM8003HY is suitable for high-reliability and aerospace applications. It is built with high-reliability materials and manufacturing processes, and it has undergone rigorous testing and qualification. However, it's essential to follow the recommended design and manufacturing guidelines to ensure the device's reliability and performance.
  • To troubleshoot issues with the LTM8003HY, start by verifying the input voltage, output voltage, and current. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to check for any oscillations or noise on the output. If the issue persists, consult the datasheet and application notes or contact Analog Devices' technical support.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTM8003HY#PBF Overview

Use the download button to access the LTM8003HY#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTM80, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
