LTM8031EV#PBF - Analog Devices

Description: Switching Voltage Regulators Ultralow N EMC 36V, 1A DC/DC Module R

Download LTM8031EV#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LTM8031EV#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

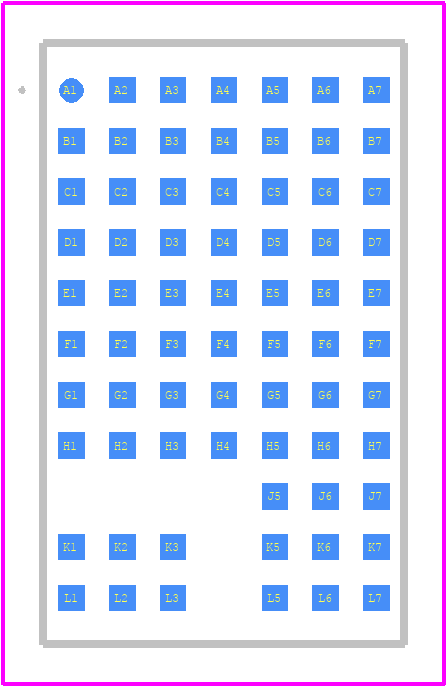

LTM8031EV#PBF - Analog Devices PCB footprint - Other - Other - LGA Package 71-Lead (15mm × 9mm × 2.82mm)_2023
click to zoom
3D Models
LTM8031EV#PBF - Analog Devices - 3D model - Other - LGA Package 71-Lead (15mm × 9mm × 2.82mm)_2023
click to zoom

LTM8031EV#PBF Details

  • Manufacturer Part Number:

    LTM8031EV#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    9 X 15 MM, 2.82 MM HEIGHT, ROHS COMPLIANT, LGA-71

  • Pin Count:

    71

  • Manufacturer Package Code:

    05-08-1823

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 0.8V TO 10V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3.6 V

  • Input Voltage-Nom:

    10 V

  • JESD-30 Code:

    R-XBCC-B71

  • JESD-609 Code:

    e4

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    71

  • Operating Temperature-Max:

    125 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    10 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    BCC

  • Package Equivalence Code:

    LGA71,7X11,50

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.97 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2400 kHz

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    BUTT

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9 mm

LTM8031EV#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LTM8031EV is 40V, but it's recommended to operate within the specified input voltage range of 3.5V to 36V for optimal performance.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, the output voltage can be adjusted using the FB pin and an external resistor divider network.
  • The LTM8031EV can deliver up to 3A of output current, but this may vary depending on the input voltage, output voltage, and thermal conditions. It's essential to ensure that the device is properly heatsinked and operated within the recommended operating conditions.
  • The LTM8031EV has built-in overcurrent protection and thermal shutdown features. However, it's still essential to add external protection components, such as fuses or current-sensing resistors, to prevent damage from excessive current or voltage. Additionally, ensure proper heatsinking and airflow to prevent overheating.
  • The LTM8031EV is rated for operation up to 125°C, but it's essential to ensure that the device is properly heatsinked and operated within the recommended operating conditions. Excessive temperatures can affect the device's performance and reliability.
