LTM8056IY - Analog Devices

Description: Non-Isolated PoL Module DC DC Converter 1 Output 1.2 ~ 48V 5.4A 5V - 58V Input

Download LTM8056IY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LTM8056IY - Analog Devices - PCB symbol
click to zoom
PCB Footprints

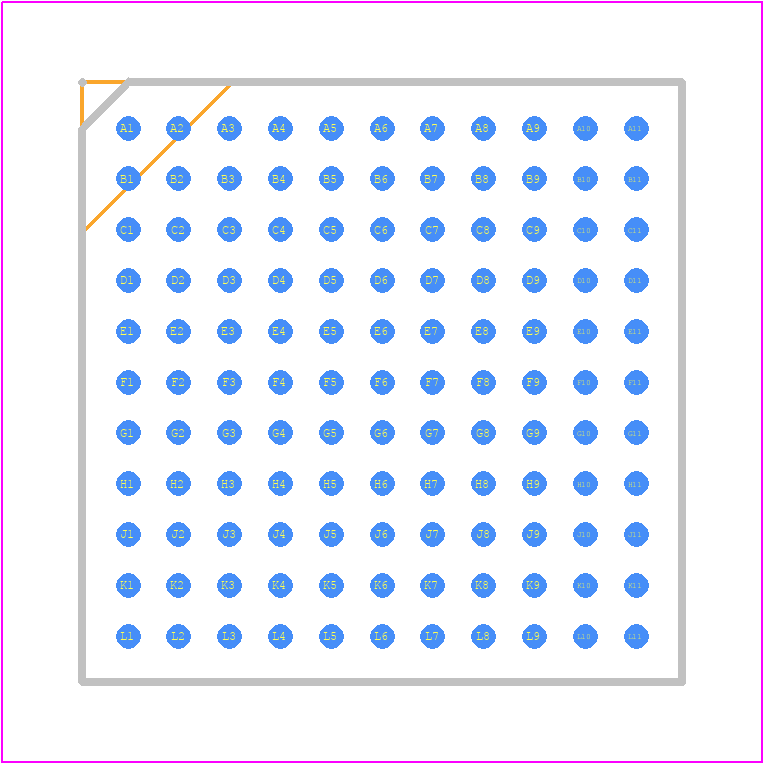

LTM8056IY - Analog Devices PCB footprint - BGA - BGA - 2019-04-24
click to zoom
3D Models
LTM8056IY - Analog Devices - 3D model - BGA - 2019-04-24
click to zoom

LTM8056IY Details

  • Manufacturer Part Number:

    LTM8056IY

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Pin Count:

    121

  • Manufacturer Package Code:

    05-08-1891

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OUTPUT VOLTAGE RANGE FROM 1.2 VOLT TO 48 VOLT

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    58 V

  • Input Voltage-Min:

    5 V

  • Input Voltage-Nom:

    6 V

  • JESD-30 Code:

    S-PBGA-B121

  • JESD-609 Code:

    e0

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    121

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    245

  • Seated Height-Max:

    5.12 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    800 kHz

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    20

  • Width:

    15 mm

LTM8056IY Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LTM8056IY is 40V, but it's recommended to operate within the specified input voltage range of 3.5V to 36V for optimal performance and reliability.
  • To ensure stability, follow the recommended layout guidelines, use a low-ESR output capacitor, and add a 10nF ceramic capacitor between the VIN and PGND pins. Additionally, ensure that the input and output capacitors are properly decoupled and placed close to the device.
  • For optimal performance, follow a star-ground layout, keep the input and output capacitors close to the device, and minimize the length of the traces between the device and the capacitors. Also, ensure that the high-current paths are wide and short, and that the thermal vias are properly connected to the thermal pad.
  • The output voltage of the LTM8056IY can be calculated using the formula: VOUT = (R1/R2) * (VIN - VREF), where R1 and R2 are the resistors in the feedback network, VIN is the input voltage, and VREF is the internal reference voltage (1.21V).
  • The maximum output current that the LTM8056IY can deliver is 2A, but it's recommended to operate within the specified output current range of 0A to 1.5A for optimal performance and reliability.
