LTM8058IY#PBF - Analog Devices

Description: Switching Voltage Regulators 2kVAC Isolated, 1.5W Module DC/DC Converter with LDO Post Regulator

Download LTM8058IY#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

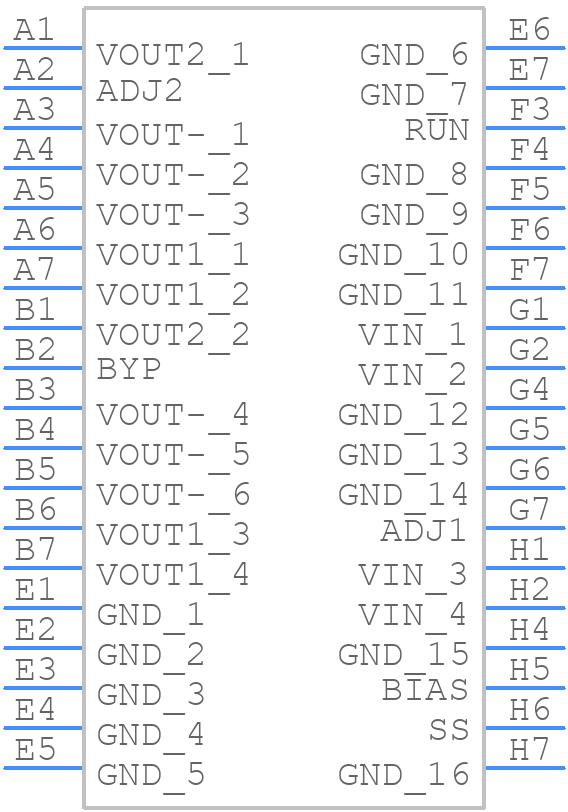

Symbol
LTM8058IY#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTM8058IY#PBF - Analog Devices PCB footprint - BGA - BGA - BGA-38
click to zoom
3D Models
LTM8058IY#PBF - Analog Devices - 3D model - BGA - BGA-38
click to zoom

LTM8058IY#PBF Details

  • Manufacturer Part Number:

    LTM8058IY#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-38

  • Pin Count:

    38

  • Manufacturer Package Code:

    05-08-1925

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OUTPUT VOLTAGE RANGE FROM 2.3 VOLT TO 13 VOLT AND 1.2 VOLT TO 12 VOLT

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    31 V

  • Input Voltage-Min:

    3.1 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PBGA-B38

  • JESD-609 Code:

    e1

  • Length:

    11.25 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.44 A

  • Output Voltage-Max:

    13 V

  • Output Voltage-Min:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Seated Height-Max:

    5.12 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Width:

    9 mm

LTM8058IY#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LTM8058IY#PBF is 40V, but it's recommended to operate within the specified input voltage range of 3.5V to 36V for optimal performance.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout guidelines, use a suitable output capacitor, and ensure that the input voltage is within the specified range. Additionally, the output voltage can be adjusted using the FB pin, and the output voltage stability can be improved by adding a capacitor in parallel with the output resistor.
  • The maximum output current that the LTM8058IY#PBF can deliver is 2A, but it's recommended to operate within the specified output current range of 0A to 1.5A for optimal performance and to prevent overheating.
  • To protect the LTM8058IY#PBF from overheating, ensure that the device is operated within the specified temperature range of -40°C to 125°C, and that the thermal pad is properly connected to a heat sink or a thermal interface material. Additionally, ensure that the device is not operated at maximum output current for extended periods.
  • The EN (Enable) pin is used to enable or disable the LTM8058IY#PBF. When the EN pin is pulled high, the device is enabled, and when it's pulled low, the device is disabled. This pin can be used to implement power sequencing or to shut down the device when not in use.
