LTM8071IY - Analog Devices

LTM8071IY Details

• Manufacturer Part Number:

  LTM8071IY

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Part Life Cycle Code:

  Active

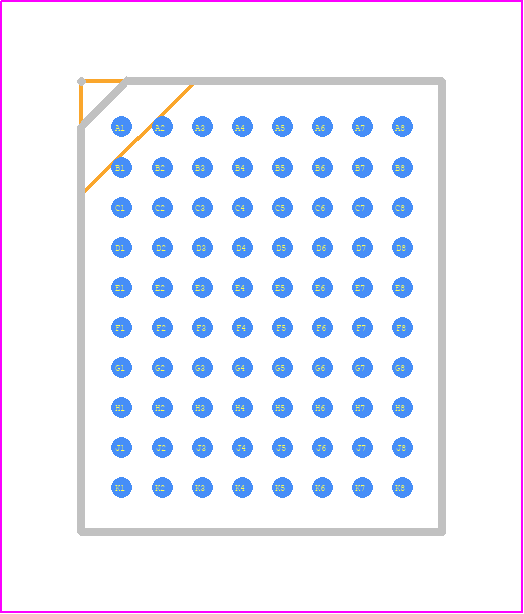

• Package Description:

  BGA-80

• Pin Count:

  80

• Manufacturer Package Code:

  05-08-1997

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Date Of Intro:

  2018-10-01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Additional Feature:

  OUTPUT VOLTAGE IS FROM 0.97V TO 15V

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  60 V

• Input Voltage-Min:

  3.6 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-PBGA-B80

• Length:

  11.25 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  80

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  5 A

• Output Voltage-Max:

  15 V

• Output Voltage-Min:

  0.97 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY

• Seated Height-Max:

  3.52 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  2200 kHz

• Technology:

  HYBRID

• Temperature Grade:

  AUTOMOTIVE

• Terminal Form:

  BALL

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Width:

  9 mm
