LTM8080IY#PBF - Analog Devices

Description: 40VIN, Dual 500mA or Single 1A Ultralow Noise, Ultrahigh PSRR μModule Regulator

Download LTM8080IY#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

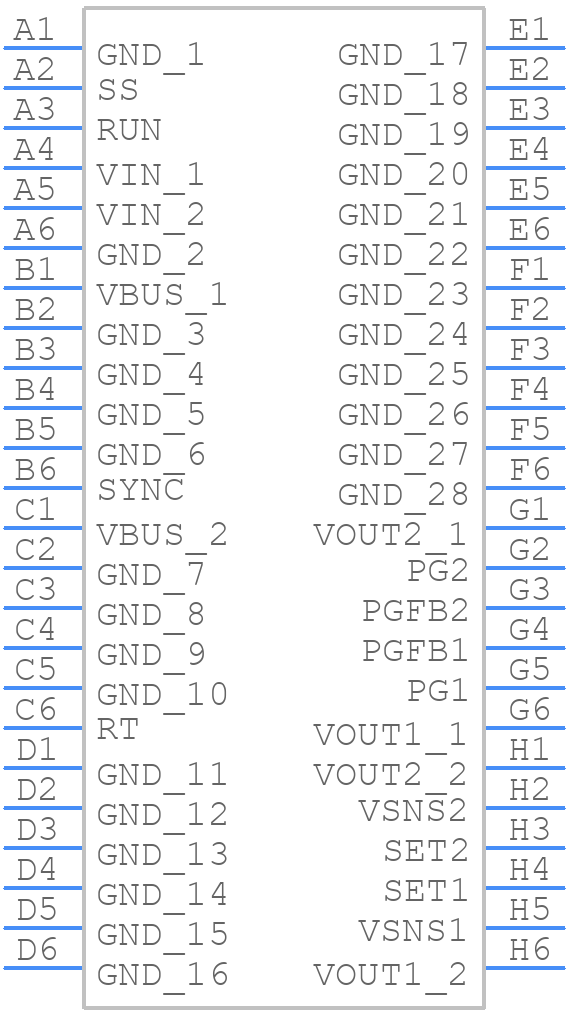

Symbol
LTM8080IY#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTM8080IY#PBF - Analog Devices PCB footprint - BGA - BGA - 48-Lead (9mm × 6.25mm × 3.32mm) (Reference LTC DWG # 05-08-1999 Rev A)
click to zoom
3D Models
LTM8080IY#PBF - Analog Devices - 3D model - BGA - 48-Lead (9mm × 6.25mm × 3.32mm) (Reference LTC DWG # 05-08-1999 Rev A)
click to zoom

LTM8080IY#PBF Details

  • Manufacturer Part Number:

    LTM8080IY#PBF

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    CHIP SCALE BGA

  • Package Description:

    BGA-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    CHIP SCALE BGA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2022-12-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustability:

    ADJUSTABLE

  • JESD-30 Code:

    R-PBGA-B48

  • Length:

    9 mm

  • Load Regulation-Max(%):

    0.00625%

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Current2-Max:

    0.5 A

  • Output Voltage1-Max:

    8 V

  • Output Voltage2-Max:

    8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA48,8X6,39

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Regulator Type:

    ADJUSTABLE POSITIVE MULTIPLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    3.52 mm

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    6.25 mm

LTM8080IY#PBF Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout for the LTM8080IY#PBF in the datasheet, but it's also recommended to follow general guidelines for thermal management, such as using a solid ground plane, placing thermal vias under the device, and using a heat sink if necessary.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a heat sink if necessary, and ensure good airflow around the device. Additionally, consider using thermal interface materials and following proper soldering techniques to minimize thermal resistance.
  • Using a lower input voltage than the recommended range may result in reduced output voltage, efficiency, and power delivery. Using a higher input voltage than the recommended range may result in increased power dissipation, reduced efficiency, and potentially damage to the device. It's essential to operate within the recommended input voltage range to ensure reliable operation and optimal performance.
  • To troubleshoot issues with the LTM8080IY#PBF, start by verifying the input voltage, output load, and PCB layout. Check for proper component selection, soldering, and assembly. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue. Consult the datasheet and application notes for guidance on troubleshooting and debugging techniques.
  • The LTM8080IY#PBF is designed to meet EMI and EMC standards, but it's still essential to follow proper PCB layout and design practices to minimize EMI and EMC issues. Use shielding, filtering, and other techniques to reduce electromagnetic interference and ensure compliance with relevant standards.
