The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. A minimum of 2oz copper thickness is recommended.
To ensure reliable operation in high-temperature environments, it is essential to follow the recommended derating curves, ensure good thermal design, and consider using a heat sink or thermal interface material. Additionally, the device should be operated within the specified junction temperature range.
The LTR-X140A has built-in ESD protection, but it is still essential to follow standard ESD handling precautions, such as using an ESD wrist strap, mat, or workstation, and storing the devices in anti-static packaging. Avoid touching the device pins or handling them in a way that could generate static electricity.
The LTR-X140A is not hermetically sealed, so it is not recommended for use in high-humidity environments. If operation in a humid environment is necessary, consider using a conformal coating or potting the device to protect it from moisture.
The recommended soldering profile for the LTR-X140A involves a peak temperature of 260°C, with a dwell time of 10-30 seconds. The device should be soldered using a lead-free soldering process, and the soldering iron should be kept away from the device body to prevent thermal damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LTR-X140A Overview

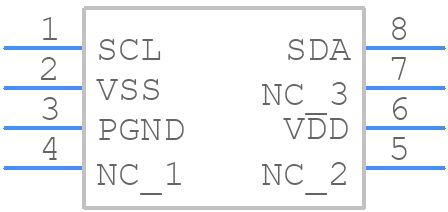

Use the download button to access the LTR-X140A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTR-X,
or try a keyword search, such as Other Sensors/Transducers
