LTS-4940AHR - Lite-On

Description: Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 2V 20mA 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm) 14-DIP (0.300", 7.62mm)

Download LTS-4940AHR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

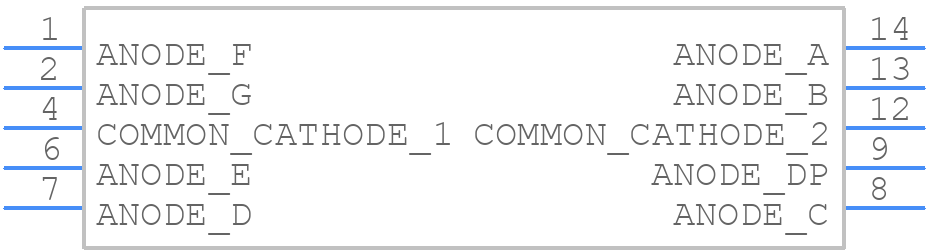

LTS-4940AHR - Lite-On - PCB symbol
click to zoom
PCB Footprints

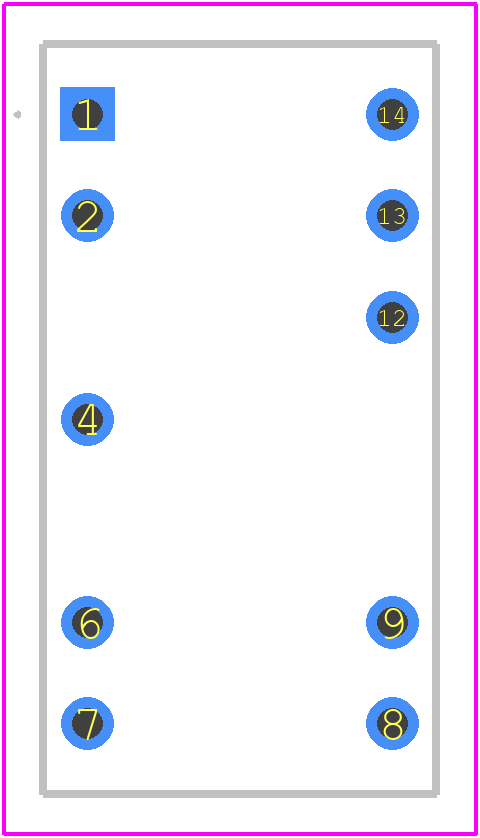

LTS-4940AHR - Lite-On PCB footprint - Other - Other - LTS-4940AHR-1
click to zoom
3D Models
LTS-4940AHR - Lite-On - 3D model - Other - LTS-4940AHR-1
click to zoom

LTS-4940AHR Details

  • Manufacturer Part Number:

    LTS-4940AHR

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.20.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    5

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    HIGH EFFICIENCY RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    10.16 mm

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    2.8 V

  • JESD-609 Code:

    e0

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -35 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    635 nm

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

LTS-4940AHR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. A minimum of 2oz copper thickness is recommended.
  • To ensure reliable operation in high-temperature environments, it is essential to follow the recommended derating curves, ensure good thermal management, and avoid exceeding the maximum junction temperature (Tj) of 150°C.
  • The LTS-4940AHR has built-in ESD protection, but it is still recommended to follow standard ESD handling procedures during assembly and testing. Additionally, using ESD protection devices such as TVS diodes can provide extra protection.
  • Yes, the LTS-4940AHR can be used in switching regulator applications, but it is essential to ensure that the device is operated within its safe operating area (SOA) and that the switching frequency is within the recommended range.
  • The recommended storage condition for the LTS-4940AHR is in a dry, cool place with a temperature range of -40°C to 30°C and humidity below 60%. The device should be stored in its original packaging or in a similar anti-static package.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTS-4940AHR Overview

Use the download button to access the LTS-4940AHR schematic symbol, PCB footprint, and 3D model.
