Description:Display Modules - LED Character and Numeric Orange-Red 7-Segment 1 Character Common Anode 2V 20mA 0.673" H x 0.488" W x 0.315" D (17.10mm x 12.40mm x 8.00mm) 10-DIP (0.600", 15.24mm)
A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the IC is recommended. This helps to dissipate heat efficiently and reduce thermal resistance.
Ensure that the device is operated within the recommended voltage and current ratings, and that the PCB is designed to minimize thermal gradients. Also, consider using a thermal interface material (TIM) to improve heat transfer between the IC and the heat sink.
The maximum allowable voltage on the input pins is 5.5V, which is the absolute maximum rating. However, it's recommended to operate the device within the recommended voltage range of 4.5V to 5.5V for optimal performance and reliability.
Check the input voltage, output voltage, and current consumption to ensure they are within the recommended ranges. Verify that the device is properly soldered and that there are no shorts or opens on the PCB. Also, check the input and output capacitors for any signs of damage or degradation.
Yes, the LTS-5501AE is suitable for high-reliability and automotive applications. However, it's essential to follow the recommended design and manufacturing guidelines, and to perform thorough testing and validation to ensure the device meets the required standards and specifications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LTS-5501AE Overview

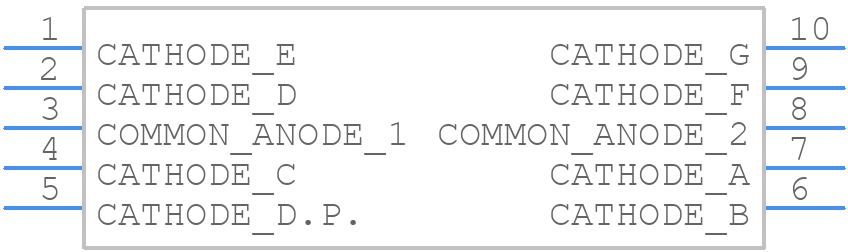

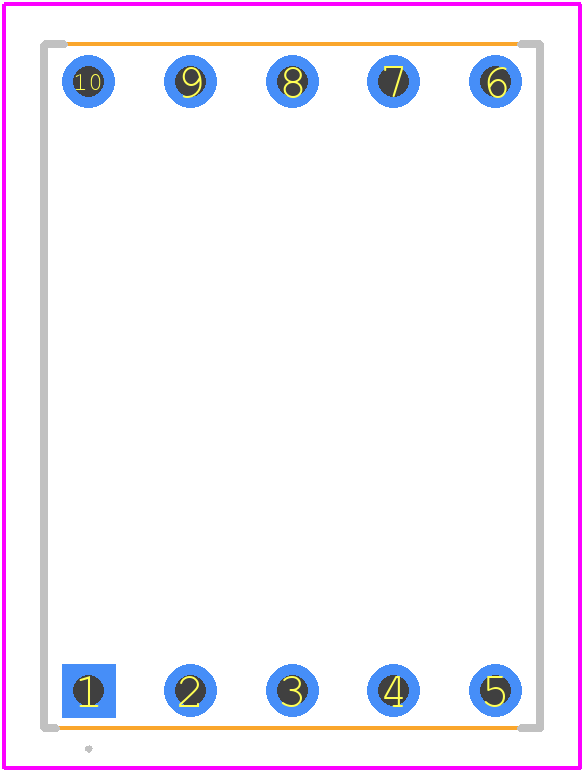

Use the download button to access the LTS-5501AE schematic symbol, PCB footprint, and 3D model.
