Part Image

LTS-5503AE - Lite-On

Description: Display Modules - LED Character and Numeric Orange-Red 7-Segment 1 Character Common Cathode 2V 20mA 0.673" H x 0.488" W x 0.315" D (17.10mm x 12.40mm x 8.00mm) 10-DIP (0.600", 15.24mm)

Download LTS-5503AE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

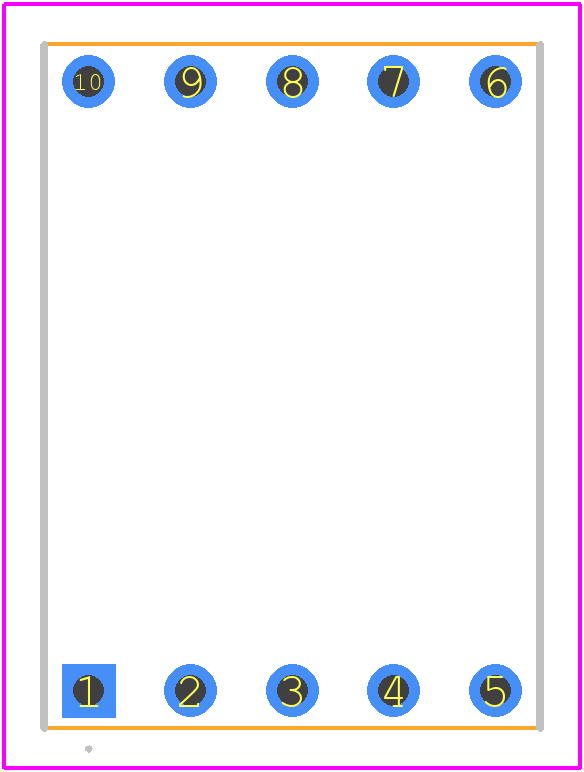

LTS-5503AE - Lite-On PCB footprint - Other - Other - LTS-5503AE-4
click to zoom
3D Models
LTS-5503AE - Lite-On  - 3D model - Other - LTS-5503AE-4
click to zoom

LTS-5503AE Details

  • Manufacturer Part Number:

    LTS-5503AE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Not Compliant

  • HTS Code:

    8541.40.20.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    ORANGE RED

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    14.22 mm

  • Forward Current-Max:

    0.025 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -35 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

LTS-5503AE Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a large copper area for heat dissipation is recommended. The device should be placed near a thermal pad or a heat sink to ensure efficient heat transfer.
  • Ensure that the device is operated within the recommended temperature range (Tj = -40°C to 125°C). Use a heat sink or thermal pad to maintain a low junction temperature. Avoid overheating, which can lead to reduced lifespan or failure.
  • A 10uF to 22uF X7R or X5R ceramic capacitor is recommended for input decoupling. The capacitor should be placed as close as possible to the VIN pin to minimize noise and ensure stable operation.
  • Use a shielded enclosure, keep the PCB layout compact, and minimize loop areas. Use a common-mode choke or ferrite bead on the input lines to reduce EMI. Ensure that the device is placed away from noise sources and antennas.
  • A 10uF to 22uF X7R or X5R ceramic capacitor is recommended for output filtering. The capacitor should be placed as close as possible to the VOUT pin to minimize noise and ensure stable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTS-5503AE Overview

Use the download button to access the LTS-5503AE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTS-5, or try a keyword search, such as Other Optoelectronics
