A recommended PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, with thermal vias connecting to the top layer. This helps to dissipate heat efficiently. Additionally, keeping the PCB traces away from the device's thermal pad and using a thermal relief pattern can also improve thermal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range (up to 125°C) and consider the device's thermal derating. Additionally, using a heat sink or thermal interface material can help to reduce the junction temperature. It's also crucial to ensure good airflow and avoid thermal hotspots.
The LTS-5601AG has built-in ESD protection, but it's still essential to follow proper handling precautions to prevent damage. This includes using an anti-static wrist strap or mat, handling the device by the body or pins (not the leads), and avoiding touching the device's pins or leads with bare hands.
The LTS-5601AG is not hermetically sealed, so it's not recommended for use in high-humidity environments. However, if it's necessary to operate in such conditions, consider using a conformal coating or potting the device to protect it from moisture. Additionally, ensure the device is properly cleaned and dried before assembly.
The recommended soldering profile for the LTS-5601AG is a peak temperature of 260°C (500°F) for 10-15 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s. It's essential to follow the recommended soldering profile to prevent damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LTS-5601AG Overview

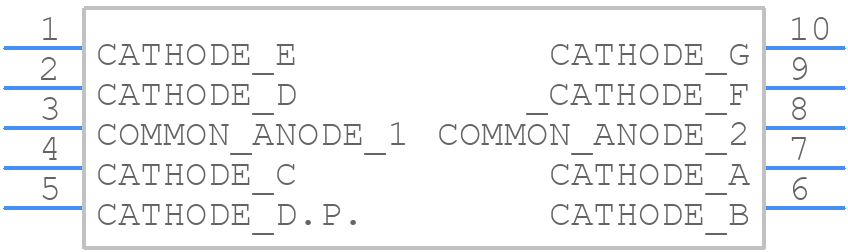

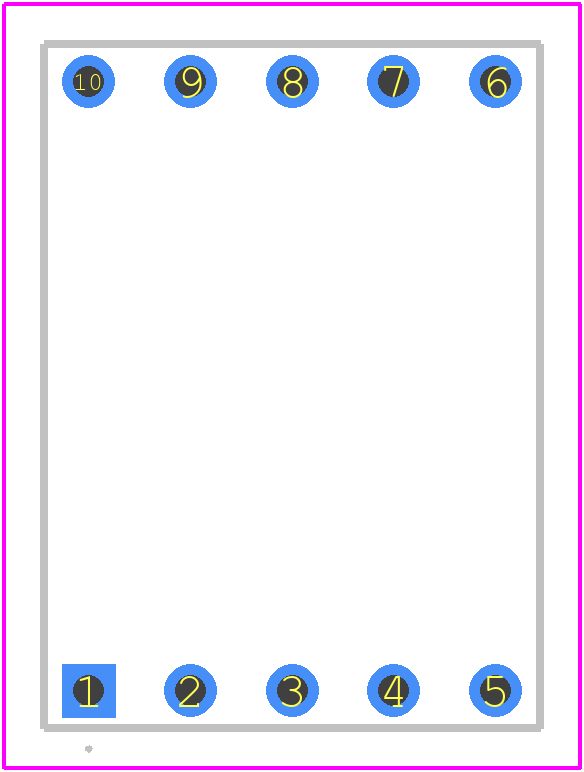

Use the download button to access the LTS-5601AG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTS-5,
or try a keyword search, such as Other Optoelectronics
