Description:Display Modules - LED Character and Numeric Yellow 7-Segment 1 Character Common Anode 2.1V 20mA 0.673" H x 0.488" W x 0.315" D (17.10mm x 12.40mm x 8.00mm) 10-DIP (0.600", 15.24mm)
A recommended PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, with thermal vias connecting to the top layer. This helps to dissipate heat efficiently. Additionally, keeping the component placement and routing symmetrical can also improve thermal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and keeping the device within its recommended operating temperature range. Additionally, consider using a thermistor or thermal sensor to monitor the device temperature and implement thermal shutdown or warning mechanisms if necessary.
The recommended soldering conditions for the LTS-5701AY are: peak temperature of 260°C, soldering time of 10 seconds, and a temperature ramp rate of 3°C/s. It's also essential to use a solder with a melting point above 217°C to ensure reliable joints.
To handle ESD protection for the LTS-5701AY, it's recommended to follow standard ESD handling procedures, such as using an ESD wrist strap or mat, storing the devices in anti-static packaging, and using ESD-protected workstations. Additionally, consider adding ESD protection devices, such as TVS diodes or ESD arrays, to the PCB design.
Operating the LTS-5701AY beyond its recommended operating conditions can lead to reduced reliability, decreased performance, and potentially even device failure. This can include operating the device at voltages or temperatures outside its specified range, or exceeding its maximum current ratings. It's essential to ensure that the device operates within its recommended conditions to guarantee reliable operation and prevent premature failure.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LTS-5701AY Overview

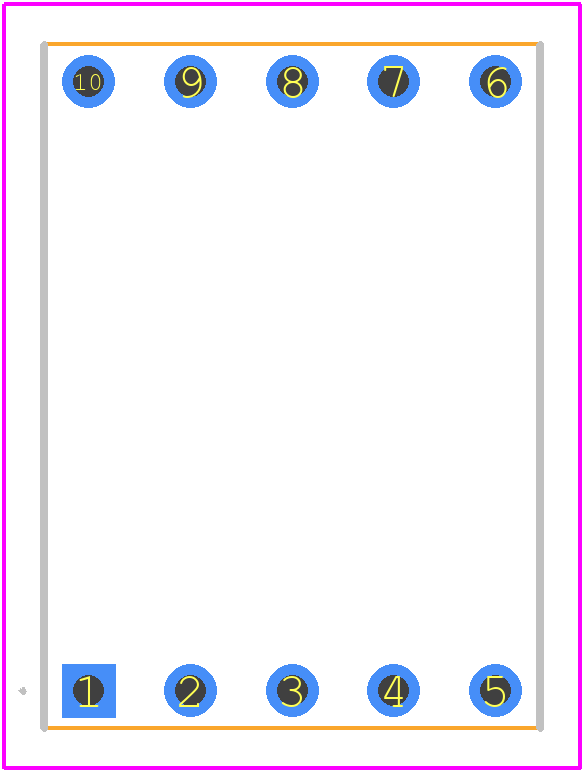

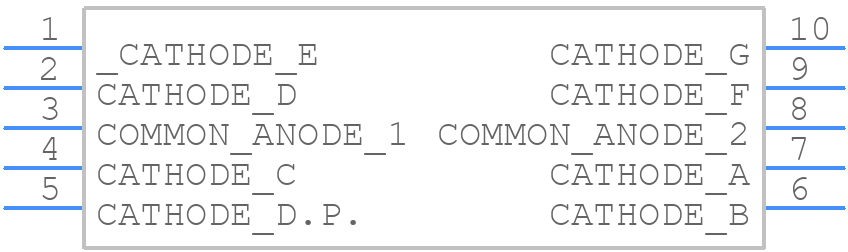

Use the download button to access the LTS-5701AY schematic symbol, PCB footprint, and 3D model.
