LTS15-NP Frequently Asked Questions (FAQs)

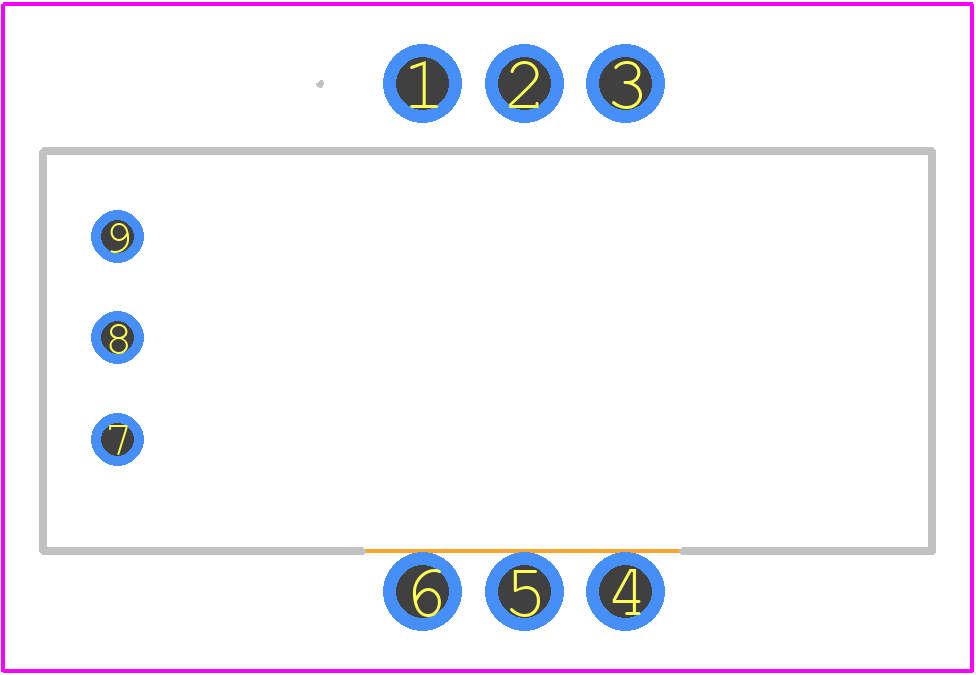

• What is the recommended PCB layout for optimal performance of the LTS15-NP?
  A symmetrical layout with a central grounding point and a star-shaped connection to the shield is recommended to minimize electromagnetic interference (EMI) and ensure accurate measurements.
• How does the LTS15-NP handle overcurrent conditions?
  The LTS15-NP has an internal overcurrent protection mechanism that limits the output current to prevent damage. However, it's still important to add external protection, such as a fuse or a current limiter, to ensure the device's safety.
• What is the typical response time of the LTS15-NP to changes in the primary current?
  The response time of the LTS15-NP is typically around 1-2 microseconds, making it suitable for high-frequency applications.
• Can the LTS15-NP be used in high-temperature environments?
  While the LTS15-NP is rated for operation up to 125°C, it's essential to consider the derating curves and thermal management to ensure reliable operation in high-temperature environments.
• How does the LTS15-NP handle common-mode voltage?
  The LTS15-NP has a high common-mode rejection ratio (CMRR), which allows it to accurately measure currents even in the presence of common-mode voltage. However, it's still important to follow proper layout and grounding practices to minimize common-mode voltage effects.
