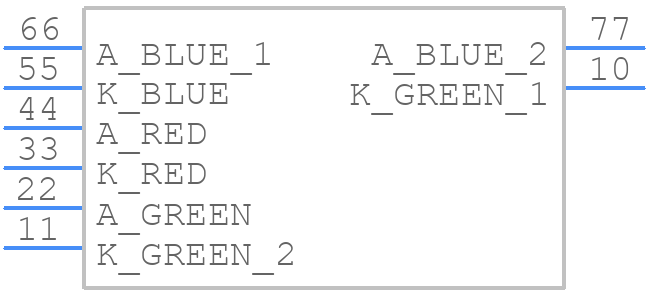

LTST-006GEBW-P2 - Lite-On - PCB symbol
click to zoom
PCB Footprints
LTST-006GEBW-P2 - Lite-On PCB footprint - Other - Other - LTST-006GEBW-P2-3
click to zoom
3D Models
LTST-006GEBW-P2 - Lite-On - 3D model - Other - LTST-006GEBW-P2-3
click to zoom

LTST-006GEBW-P2 Details

  • Manufacturer Part Number:

    LTST-006GEBW-P2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    RED/GREEN/BLUE

  • Configuration:

    SEPARATE, 3 ELEMENTS

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.4 V

  • Lens Type:

    DIFFUSED WHITE

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRIPLE COLOR LED

  • Overall Height:

    0.64 mm

  • Packing Method:

    TR, 7 INCH

  • Shape:

    RECTANGULAR

  • Surface Mount:

    YES

  • Viewing Angle:

    120 deg

LTST-006GEBW-P2 Frequently Asked Questions (FAQs)

  • The recommended storage temperature for LTST-006GEBW-P2 is -20°C to 30°C, with a relative humidity of 60% or less.
  • Yes, LTST-006GEBW-P2 is suitable for outdoor applications, but it's essential to ensure proper sealing and protection from moisture and UV radiation to maintain its performance and lifespan.
  • The maximum soldering temperature for LTST-006GEBW-P2 is 260°C for 3 seconds, with a peak temperature of 240°C. It's essential to follow the recommended soldering profile to avoid damaging the LED.
  • Yes, LTST-006GEBW-P2 is compatible with lead-free soldering. However, it's crucial to follow the recommended soldering profile and temperature to ensure reliable connections.
  • The typical lifespan of LTST-006GEBW-P2 is 50,000 hours or more, depending on the operating conditions, such as temperature, current, and humidity.
