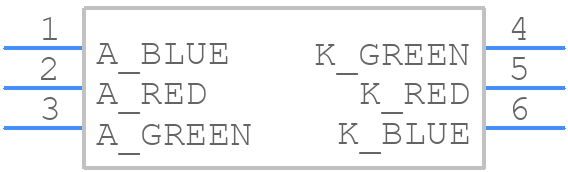

LTST-G353GEBW-P2 - Lite-On - PCB symbol
click to zoom
PCB Footprints
LTST-G353GEBW-P2 - Lite-On PCB footprint - Other - Other - PLCC-6
click to zoom
3D Models
LTST-G353GEBW-P2 - Lite-On - 3D model - Other - PLCC-6
click to zoom

LTST-G353GEBW-P2 Details

  • Manufacturer Part Number:

    LTST-G353GEBW-P2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    RED/GREEN/BLUE

  • Configuration:

    SEPARATE, 3 ELEMENTS

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.4 V

  • Lens Type:

    DIFFUSED WHITE

  • Luminous Intensity-Nom:

    240.0/750.0/150.0 mcd

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRIPLE COLOR LED

  • Overall Height:

    0.95 mm

  • Packing Method:

    TR, 7 INCH

  • Shape:

    RECTANGULAR

  • Surface Mount:

    YES

  • Terminal Pitch:

    1.125 mm

  • Viewing Angle:

    120 deg

LTST-G353GEBW-P2 Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for LTST-G353GEBW-P2 is -40°C to 100°C.
  • Yes, LTST-G353GEBW-P2 is suitable for outdoor applications due to its high luminous efficacy and resistance to environmental factors such as humidity and temperature.
  • The typical forward voltage of LTST-G353GEBW-P2 is around 2.8-3.2V, but it can vary depending on the operating current and temperature.
  • Yes, LTST-G353GEBW-P2 is compatible with PWM dimming, but the frequency and duty cycle should be carefully controlled to avoid flicker and ensure stable operation.
  • The maximum allowable current for LTST-G353GEBW-P2 is 30mA, but it's recommended to operate at a lower current to ensure reliability and extend the lifespan of the device.
