LTST-G683RGBW - Lite-On

Description: Standard LEDs - SMD SMD LED Red/Grn/Blue 150/530/260 mcd

Download LTST-G683RGBW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

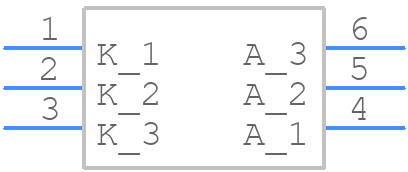

LTST-G683RGBW - Lite-On - PCB symbol
click to zoom
PCB Footprints
LTST-G683RGBW - Lite-On PCB footprint - Other - Other - LTST-G683RGBW-1
click to zoom
3D Models
LTST-G683RGBW - Lite-On - 3D model - Other - LTST-G683RGBW-1
click to zoom

LTST-G683RGBW Details

  • Manufacturer Part Number:

    LTST-G683RGBW

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    RED/GREEN/BLUE

  • Configuration:

    SEPARATE, 3 ELEMENTS

  • Forward Current-Max:

    0.02 A

  • Forward Voltage-Max:

    2.4 V

  • Lens Type:

    DIFFUSED WHITE

  • Luminous Intensity-Nom:

    157.0/532.5/267.5 mcd

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRIPLE COLOR LED

  • Overall Height:

    1.45 mm

  • Packing Method:

    TR, 7 INCH

  • Peak Wavelength:

    639/518/465 nm

  • Shape:

    RECTANGULAR

  • Size:

    2.2 mm

  • Surface Mount:

    YES

  • Terminal Pitch:

    2.75 mm

  • Viewing Angle:

    120 deg

LTST-G683RGBW Frequently Asked Questions (FAQs)

  • The recommended storage temperature for LTST-G683RGBW is -20°C to 30°C, with a relative humidity of 60% or less.
  • While LTST-G683RGBW is not specifically designed for outdoor use, it can be used in outdoor applications if properly sealed and protected from moisture and extreme temperatures.
  • The maximum forward current for LTST-G683RGBW is 30mA per channel (R, G, B, and W). Exceeding this current may reduce the LED's lifespan or cause damage.
  • To ensure color consistency, it's recommended to use LEDs from the same batch and to follow a consistent binning and sorting process. Additionally, using a consistent driving current and voltage can also help maintain color consistency.
  • LTST-G683RGBW is rated for operation up to 85°C. However, high temperatures can affect the LED's lifespan and performance. It's recommended to use a heat sink or other cooling measures to maintain a safe operating temperature.
