ULTRA BRIGHT RED/ULTRA BRIGHT GREEN/ULTRA BRIGHT BLUE
Configuration:
COMMON ANODE, 3 ELEMENTS
Forward Current-Max:
0.02 A
Forward Voltage-Max:
2.4 V
Lens Type:
DIFFUSED WHITE
Luminous Intensity-Nom:
112.5/281.0/104.0 mcd
Mounting Feature:
SURFACE MOUNT
Number of Functions:
1
Number of Terminals:
4
Operating Temperature-Max:
80 °C
Operating Temperature-Min:
-20 °C
Optoelectronic Device Type:
TRIPLE COLOR LED
Overall Height:
1 mm
Packing Method:
TR, 7 INCH
Peak Wavelength:
632/520/468 nm
Shape:
RECTANGULAR
Size:
2 mm
Surface Mount:
YES
Viewing Angle:
130 deg
LTST-S310F3WT Frequently Asked Questions (FAQs)
The recommended storage temperature range for the LTST-S310F3WT is -40°C to 100°C.
Yes, the LTST-S310F3WT is suitable for outdoor applications due to its high luminous efficacy and resistance to environmental factors such as humidity and temperature.
The typical forward voltage of the LTST-S310F3WT is 2.8-3.2V.
Yes, the LTST-S310F3WT is compatible with PWM dimming, but the frequency should be limited to 200Hz or less to avoid flicker.
The maximum current rating for the LTST-S310F3WT is 30mA.
Trust Checks
No trust score is available for this model.
Trust Score Unavailable
Sponsored
LTST-S310F3WT Overview

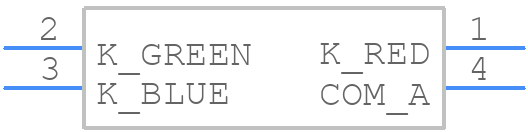

Use the download button to access the LTST-S310F3WT 3D model. You can still request or build the schematic symbol and PCB footprint by using the respective build or request forms on this page.
