- Part Number LV25-P
- Manufacturer LEM
- Pin Count 5
- Part Category Undefined or Miscellaneous
- Package Category Other
- Footprint Name Other - LV25-P
- Released Date Mar 8, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LV25-P Details
-
Manufacturer Part Number:
LV25-P
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Manufacturer:
LEM Holdings SSA
-
Sensors/Transducers Type:
VOLTAGE SENSOR
LV25-P Frequently Asked Questions (FAQs)
-
A symmetrical layout with a central grounding point and a star-configuration for the current paths is recommended to minimize noise and ensure accurate measurements.
-
Calibration involves applying a known current to the device and adjusting the zero and gain settings accordingly. Refer to the application note AN-105 for a detailed calibration procedure.
-
The LV25-P is rated for operation between -40°C and 125°C, but it's recommended to operate within -20°C to 85°C for optimal performance and accuracy.
-
Yes, the LV25-P is designed to withstand vibrations up to 10g, but it's essential to ensure proper mounting and securing of the device to prevent mechanical stress.
-
Use a shielded cable for the current conductor, keep the device away from high-frequency sources, and ensure a low-impedance grounding point to minimize electromagnetic interference.
Trust Checks
Expert Contribution
System Verified
Community Approved
LV25-P Overview

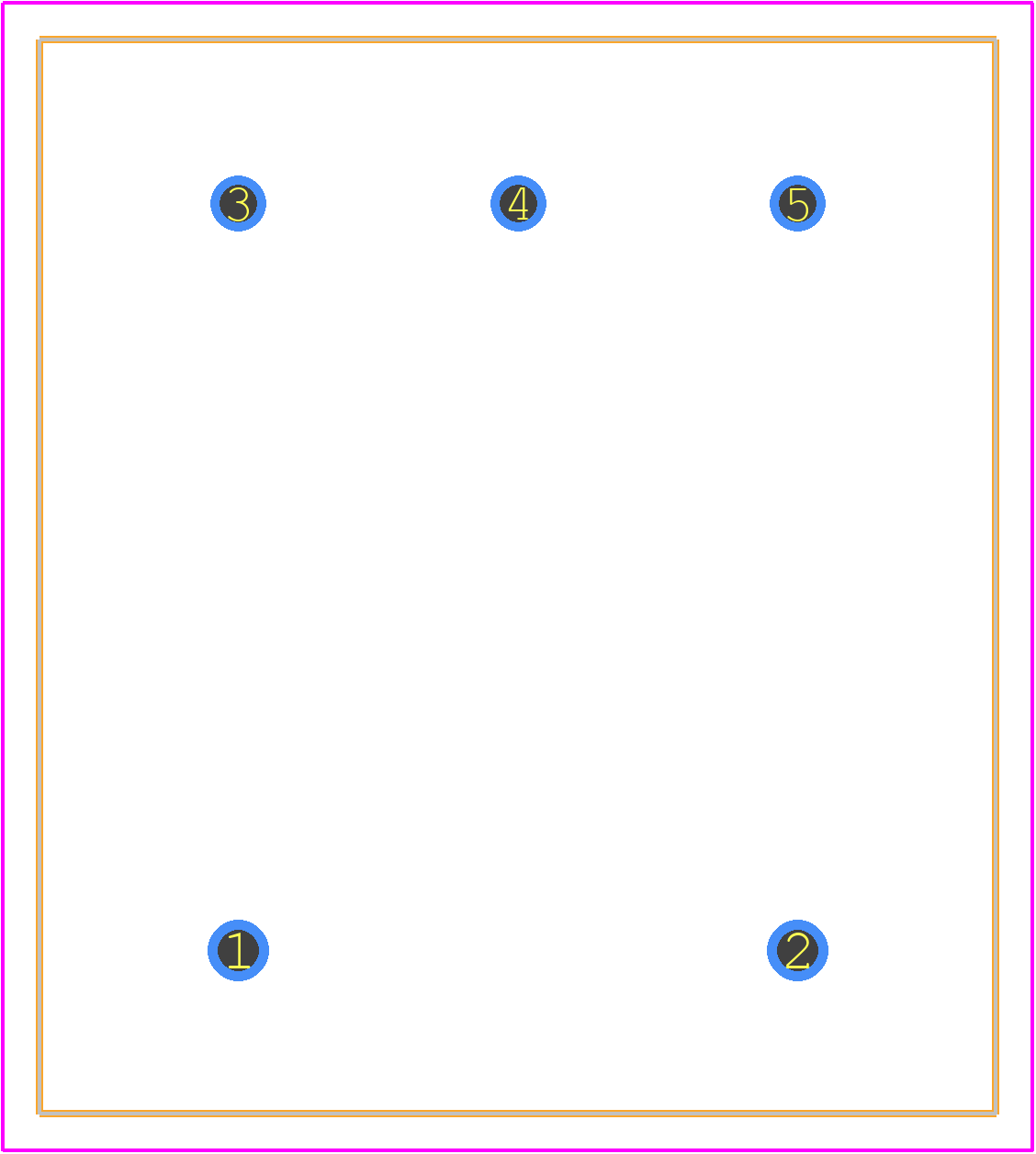

Use the download button to access the LV25-P schematic symbol, PCB footprint, and 3D model.
