A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern around the device.
Implement a robust thermal management system, including a heat sink and thermal interface material. Ensure proper PCB design, component selection, and soldering techniques.
The critical timing parameters include the clock frequency, clock duty cycle, and setup/hold times for the input signals. Refer to the datasheet for specific values and ensure proper signal integrity.
Implement ESD protection devices, such as TVS diodes or ESD arrays, on the input and output pins. Ensure proper PCB layout and component selection to minimize ESD susceptibility.
The power sequencing requirements include a controlled power-up sequence, with VCC ramping up before the input signals. Ensure a minimum of 100 ms power-up time and a maximum of 10 ms power-down time.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LV5239TAZ-NH Overview

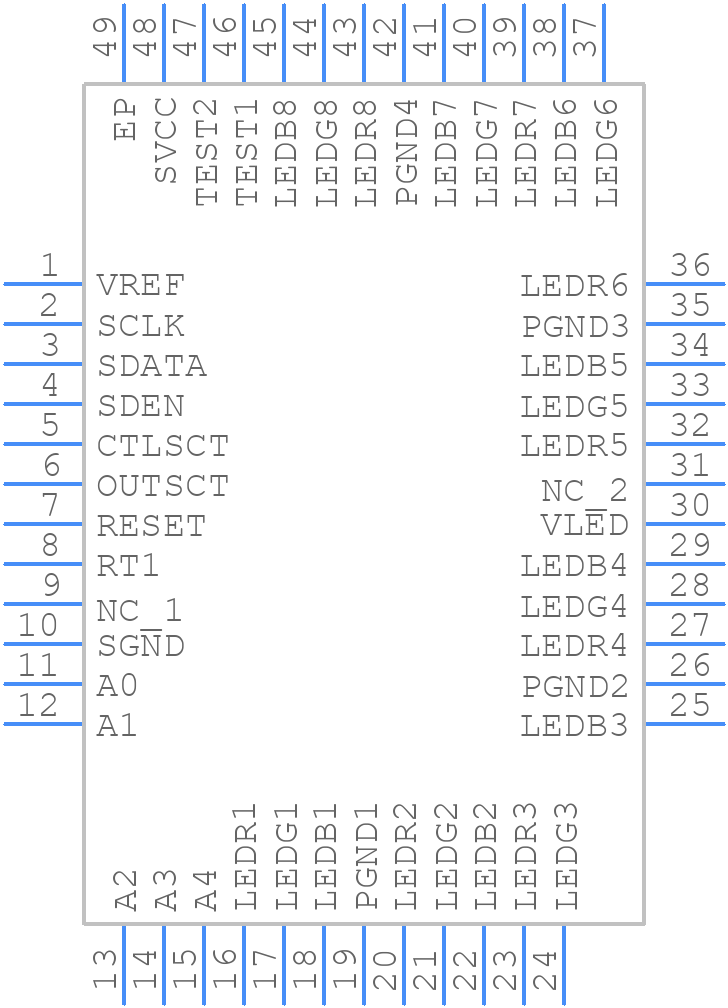

Use the download button to access the LV5239TAZ-NH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LV523,
or try a keyword search, such as Display Drivers
