LVA-6183PN+ - Mini-Circuits

Description: RF Amplifier SMT MMIC, Medium Power, Linear, HBT, Low Phase Noise Amplifier, 6 GHz to 18 GHz, 50ohm, 4x4 mm QFN Style Package

Download LVA-6183PN+ Model

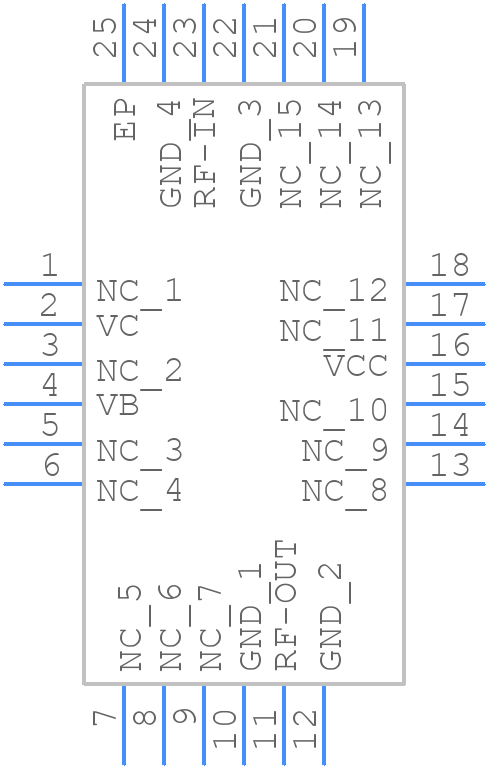

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LVA-6183PN+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 4 x 4mm QFN_2025
click to zoom
3D Models
LVA-6183PN+ - Mini-Circuits  - 3D model - Quad Flat No-Lead - 4 x 4mm QFN_2025
click to zoom

LVA-6183PN+ Details

  • Manufacturer Part Number:

    LVA-6183PN+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    15.9 dB

  • Input Power-Max (CW):

    25 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    18000 MHz

  • Operating Frequency-Min:

    6000 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -45 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Power Supplies:

    6 V

  • RF/Microwave Device Type:

    LOW NOISE AMPLIFIER

  • Supply Current-Max:

    123 mA

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.25

LVA-6183PN+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and to use a via-in-pad design to connect the amplifier's ground pins to the ground plane. Additionally, keep the input and output traces as short as possible and use 50-ohm transmission lines to minimize reflections.
  • The biasing resistors (R1 and R2) should be chosen based on the desired output current and voltage. Mini-Circuits provides a biasing calculator on their website to help with this. Typically, R1 is in the range of 1-10 kohms and R2 is in the range of 10-100 ohms.
  • The LVA-6183PN+ can handle up to +10 dBm of input power without damage. However, it's recommended to operate the amplifier at a maximum input power of +5 dBm to ensure optimal performance and reliability.
  • To optimize the amplifier's performance, use a combination of input and output matching networks to achieve the desired impedance match. Mini-Circuits provides a simulation model and application notes to help with this process.
  • The typical noise figure of the LVA-6183PN+ amplifier is around 2.5 dB. However, this can vary depending on the operating frequency, temperature, and input/output matching conditions.
